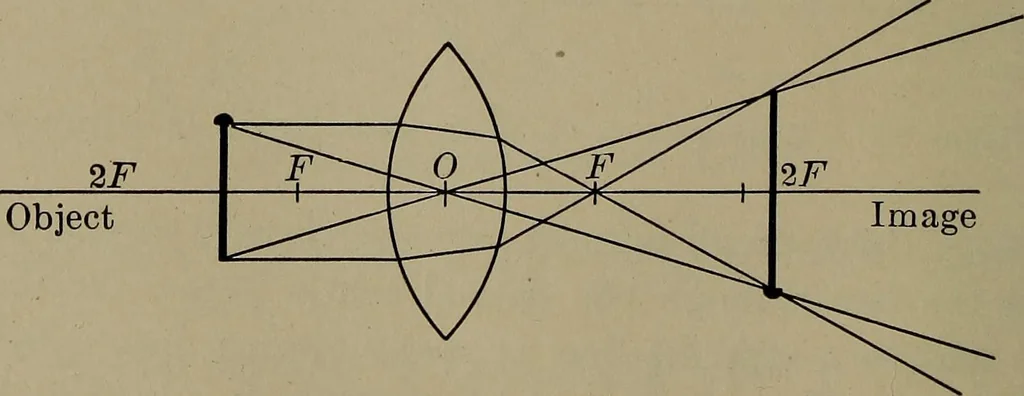

Object Figure 98. — Construction of Image when Object is at 2 F. The image is (1) at 2 F, (2) of the same size as the object,(3) inverted, and (4) real. III. The object between F and 2 F. Construct as before. (Figure 99.) The image is (1) be-yond 2 F, (2) larger than the object, (3) inverted, and… … Object Figure 99. — Construction of Image when Object is betweenF and 2 F. IMAGE THROUGH A CONVERGING LENS 115 IV. The object at F. Construct as before. (Figure 100.) The rays after passingthrough the lens are parallel, and so never meet. There-fore there is no image.
