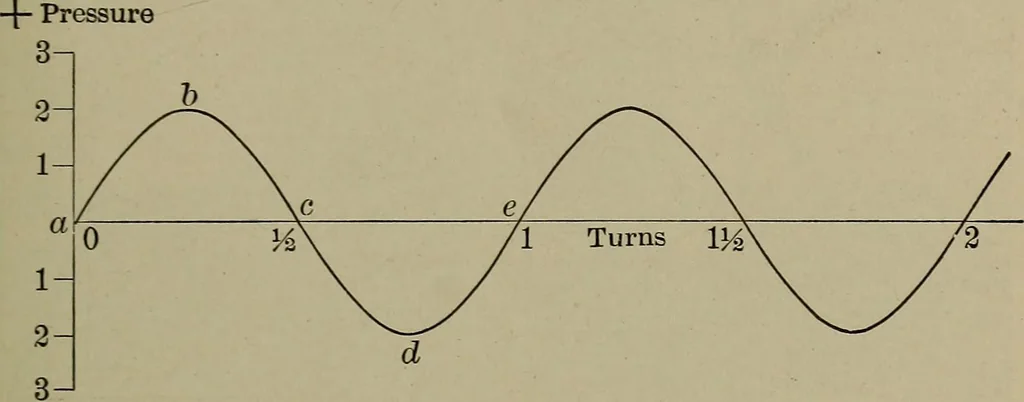

urve. Now, when the loop revolves so that the wire is at posi-tion c, the wire is again moving parallel to the lines of force.Again the pressure is zero, — point c on the curve. A. C. SIMPLE GENERATOR 157 As the loop revolves farther, the wire begins to cut thelines of force in the opposite… … — Pressure Figure 145.— Curve Showing Pressure at Different Parts of theTurn of the Armature in an A. C Generator. again; and so the pressure is highest, but in the negativedirection, — point d on the curve. When the loop completes the turn, the wire is at the samepoint as when it started, so the…
