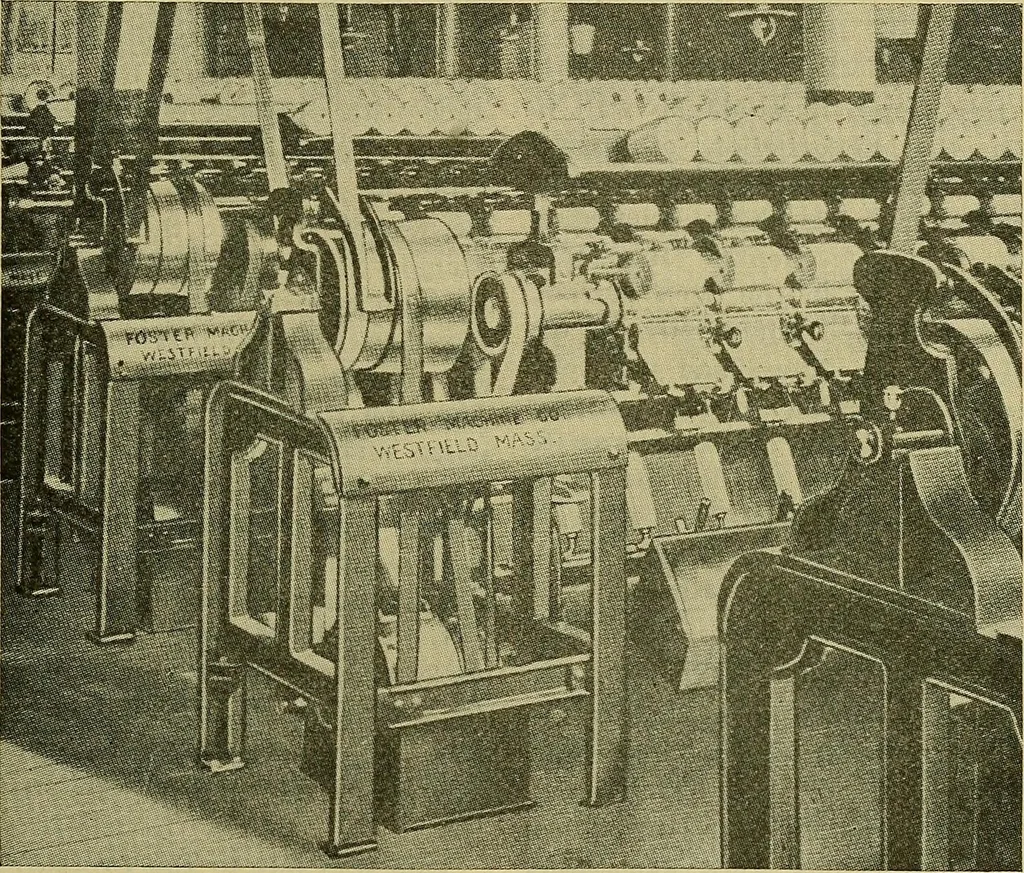

ot shown in sketch), engages beltat the underside of pulley. The leverholding the idler works free on itscentre at which it is supported by astud attached to the frame of the ma-chine. Attached to the opposite side of breaks back on the top beam, takingthe length of one round of beam totie out… … Fig. 85. Foster Winders. the lever is a rod G, which is fastenedto shipper H, by which the operatorcontrols the drive of the machine. An adjustable weight, I, can bemoved backward and forward on thelever on which it rests, to balance theshipper. By pressing the foot board,H, the idler pulley takes…
