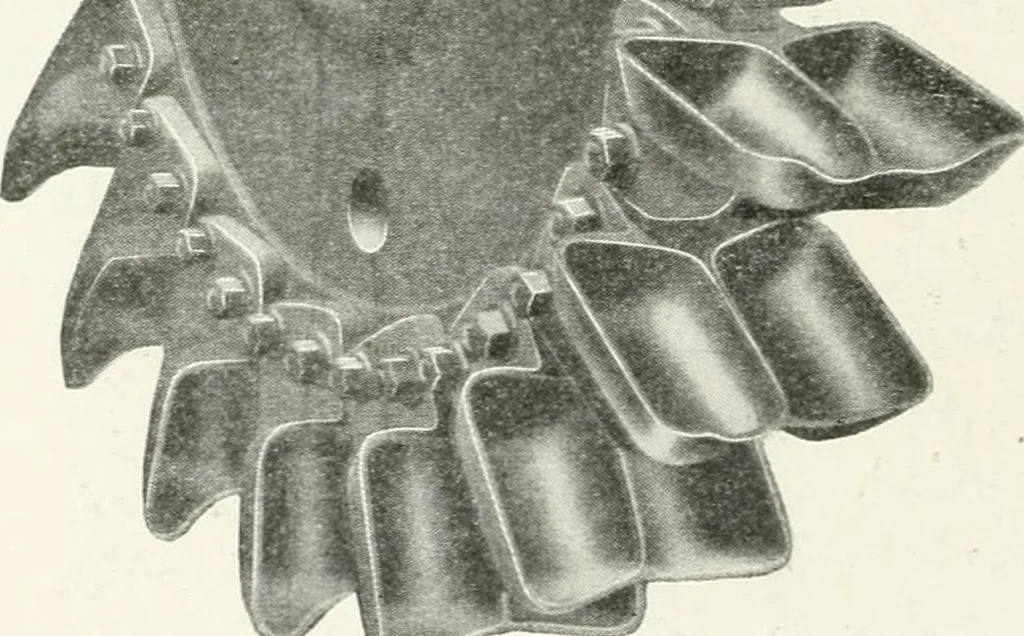

a faulty de-sign of vane, forthe water, afterstriking the outerlip, is abruptlychanged in direc-tion at the cornersa and /-», with con-sefjuent shock andloss of energy; also,after leaving avane, the streamstrikes the back ofthe one adjoining, thus producing back-pressure, with further loss… … Fig. 42. A 5,000-H.P. Pelton Water-Wheel Ruuner. This wheel. 9 ft. 10 in. in diameter, is capable of developing5,()()0 h.p. at 325 r.p.m. under 865 feet of effective head. * i*^ . •. XIN, •• • S^kifii^
