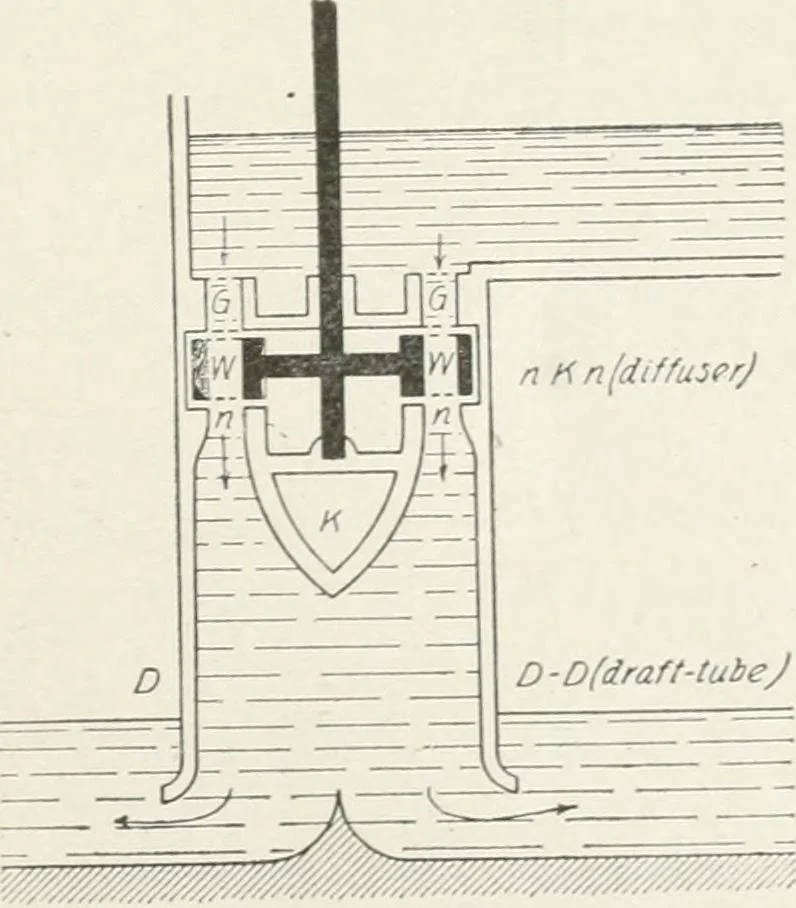

ir, di-rectly into the tail-water, or intoa suction (draft) tube. Limit tur-bines are sometimes called Haenelturbines; they may be consideredimpulse turlnnes without free de-viation. 100. The most commonforms of reaction turbines usedin America, particularly for thesmaller sizes, are of the… … Fig. 71. Jonval Turbine. Axial flow. 88 WATER-POWER DEVELOPMENT ward), in Avhich the water passes radially inward, then axially, andfinally leaves the buckets at a slant between the axial and the radialoutflow direction, are called American vortex turbines, types of whichwill appear in subsequent…
