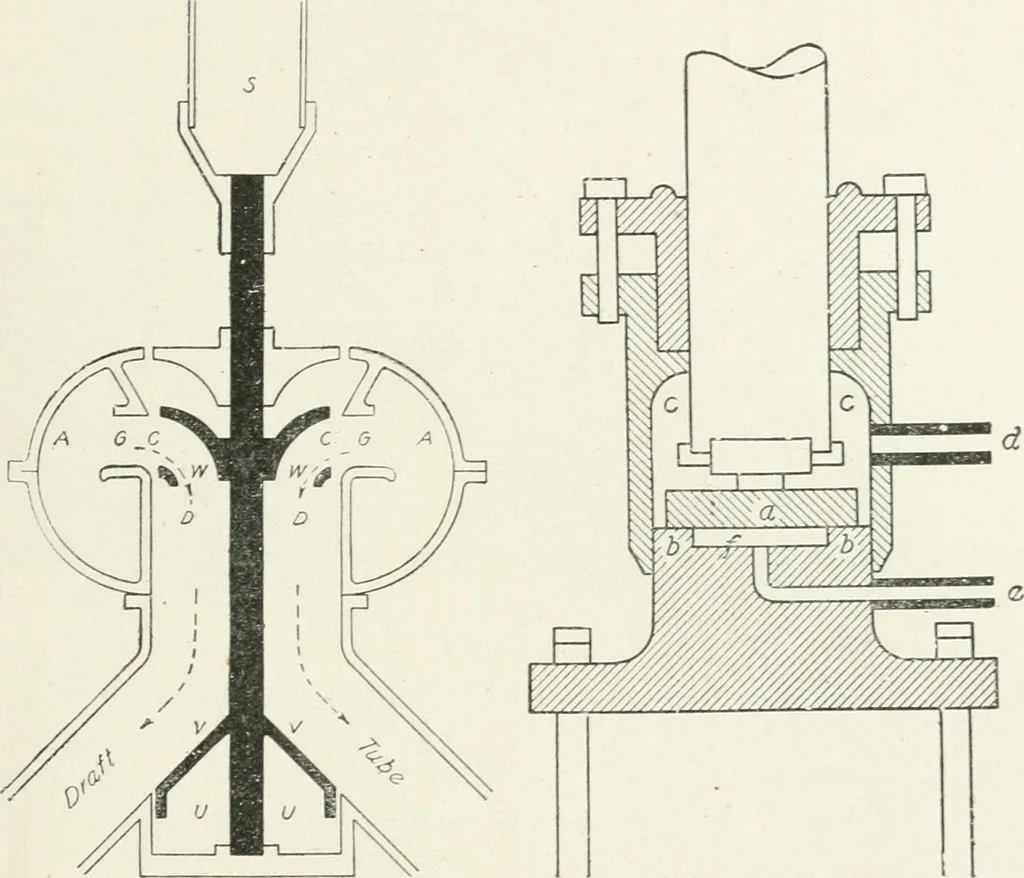

NIENT 129 steps, with forced oil lubrication, are employed instead, using a pres-sure and return pipe for circulating the oil. Frizell shows a type ofsuch oil step-bearing (Fig. 8(3). The shaft passes through a stuffing-box, and rests on the revolving plate a; the surfaces of contact be-tween a and… … Fig. 85. Thi-ust Piston Device for Siugle- Inflow Turbine.Niagara Falls Power Co., Power-H ouse No. 2. Fig. 86. Oil Step-Hf aring pressure on the plate a, nearly ecjual to the weight of the shaft and itsattachments, so that the contact surfaces sustain very moderate fric-tion. The oil passes…
