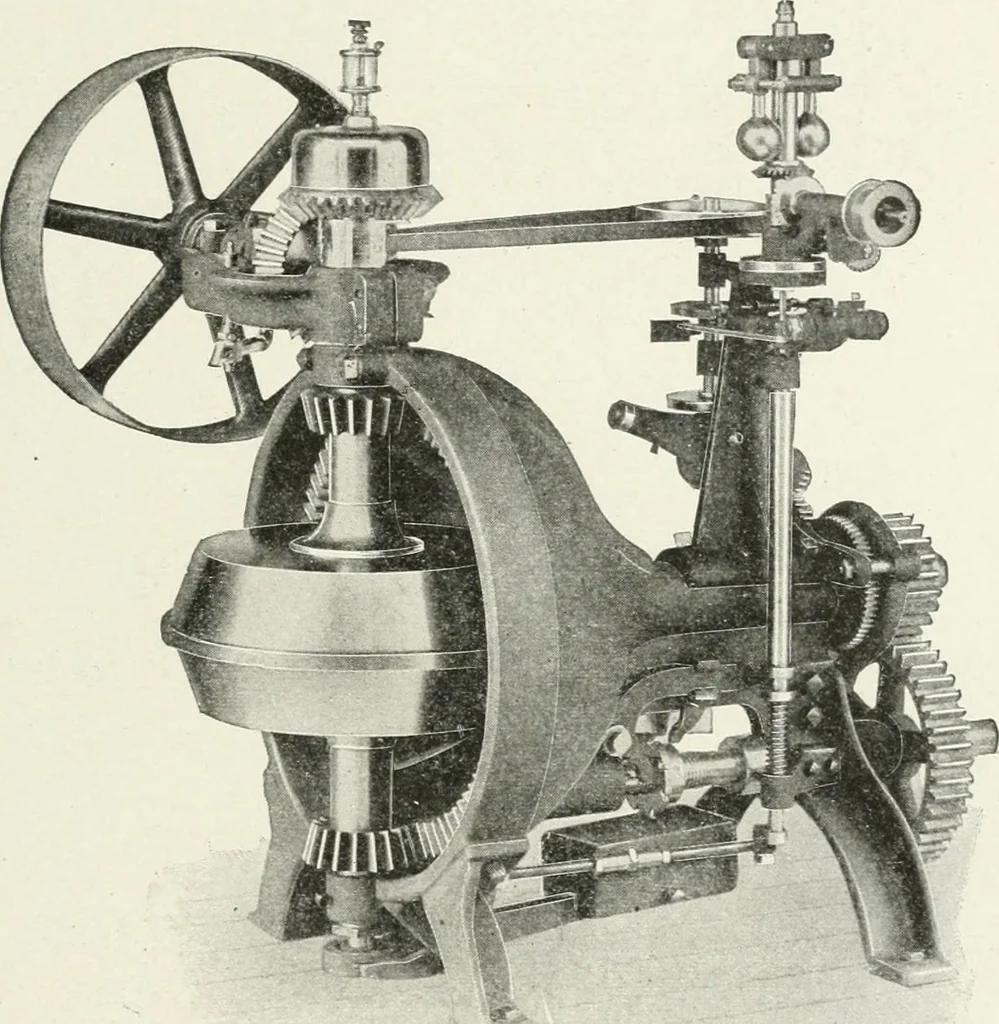

ase of hydraulic governors, this time may be reduced toone second J such governors therefore afford very close speed regu-lation. WATER-POWER DEVELOPMENT 1G5 182. Fig. 121 represents diagrammatically the Replogle Centrif-ugal Governor and Return, a device well known in American practice.*S is a… … Fig. 123. Compensating Type Woodward Governoi-, Suitable for Electric andHeavy Mill Work. Risdon-Alcott Turbine Co. completes an electrical contact by touching points C orO. Such con-tact energizes one of two electromagnets in the circuit, by which meansan auxiliary machine, or relay (not shown),…
