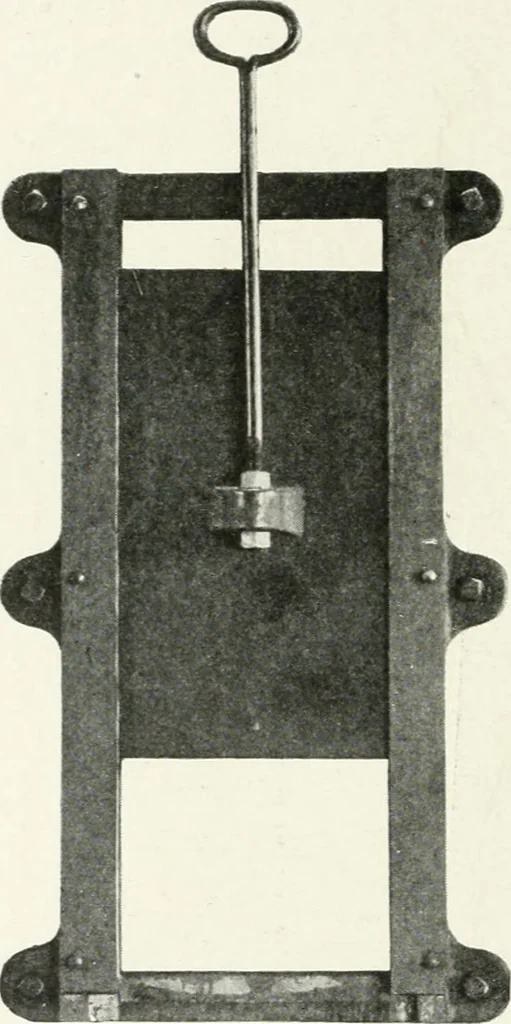

e material, V to 1 inch thick,by 4 to 5 inches wide. In order that the water may find free passage, e^•en though therack be partially clogged, as well as because of the frictional resistance,the total clear area of rack should be considerably in excess of the 172 WATER-POWER DEVELOPMENT total area… … Fig. 139. Filler Gate.With frame for bolting to a timberhead-gate. Allows passage of sufficientwater to equalize pressure, so that head-gate need not be lifted imder total pres-sure.Dayton Globe Iron Works Co., Dayton. O.
