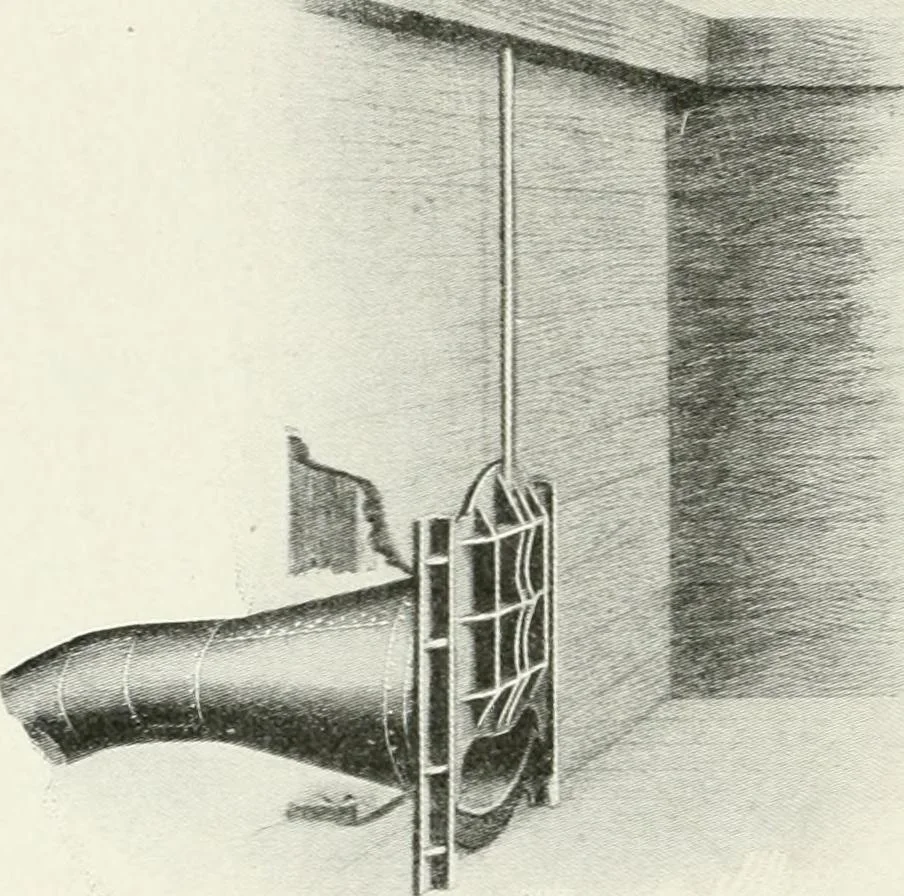

ranches of penstocks should be at an angle ofnot over 45 degrees to the penstock; or, in other words, the directionsof flow of the water in the penstock and in the nozzle or branch shouldform an angle of not over 45 degrees with eaCh other. Directly be-yond each nozzle or branch, the diameter of… … Fig. 136. Entrance Taper and Head-Gate in Flume.Pelton ^yat€l• Wheel Company, San Francisco, Cal. WATER-POWER DEVELOPMENT 177 in mind that the friction loss in a penstock varies with the s(|uare ofthe speed. Conditions making a low speed advisable are: Low head, largediameter of penstock, great…
