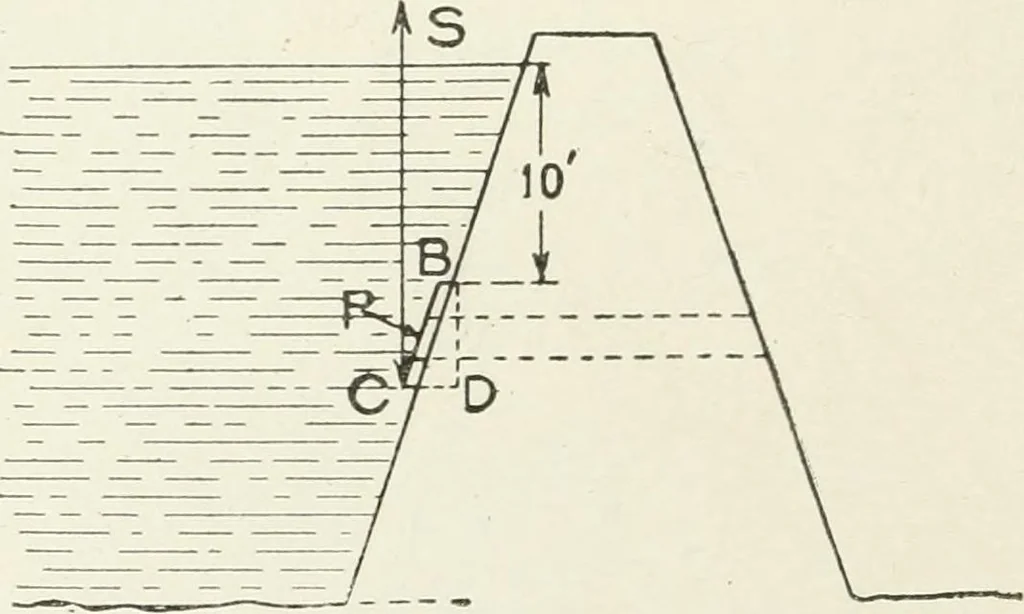

area of any form, then The distance AJ^ froni the surface to thecenter of pressure is equal to the moment ofInertia (f the (jiven area ahout an a.ris at A (M)divided hj the j/roduct of the area times thedistance from A to its center of (fravitij. Examjdes. 1. What force S will be required to lift a… … Fi. IC. horizontal projection CD = 1.1»:5 ft. The depth of V) below thesurface is 10 ft. We will first find the total pressure P against the gate. ByArt. 7 this wdll be the pressure per s(pin. at the center multiplied BD 10 + 3.5 by the area. Thedeptli of the center is 10 -r = 11.75 feet. The…
