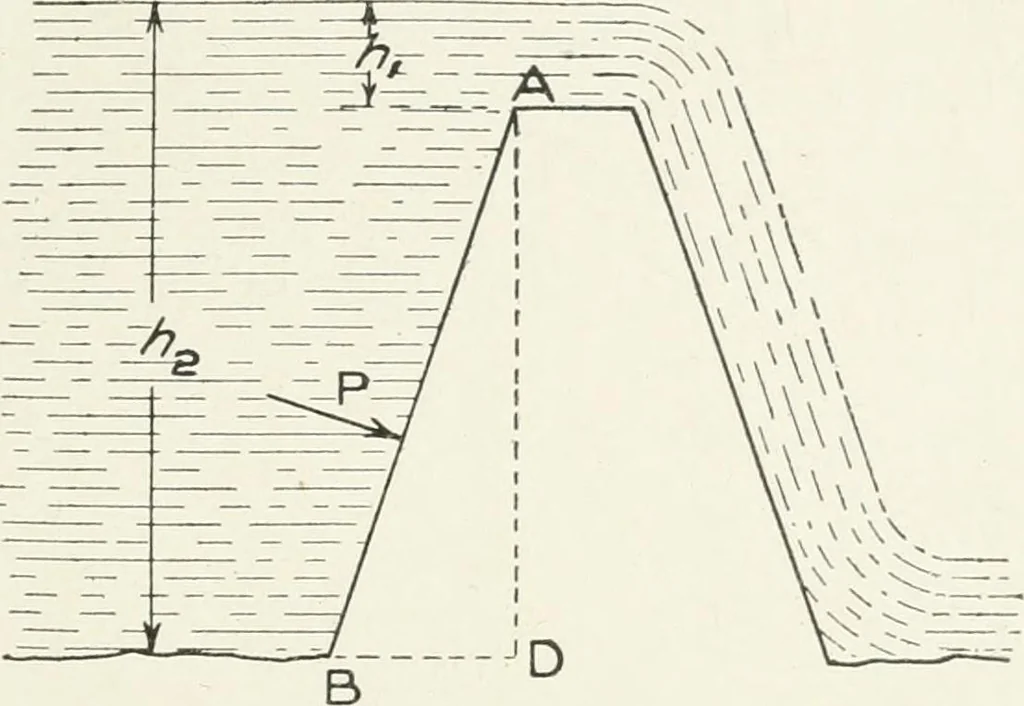

t h =depth of water against the dam. Consider a length of dam of onefoot. By Art, 7 the total pressure P is equal to the pressure atthe half depth multiplied by the area of AB or P = -^ X ?/? X (length of AB) X 1. The center of pressure, by Art, 12, is two-thirds of the distancefrom A to B.… … D Fig. 19.The vertical component is likewise Pv = ^ X w X (length BD), but we can write BD = // tan 6. Hence P^=_J^Wr tan 6. (17) If the dam is submerged, as sliown in Fig. 19, then theluethod empU)_Yed in example 1 of this Article must be used. EXAMPLES FOR PRACTICE. 1. AVhat is the horizontal…
