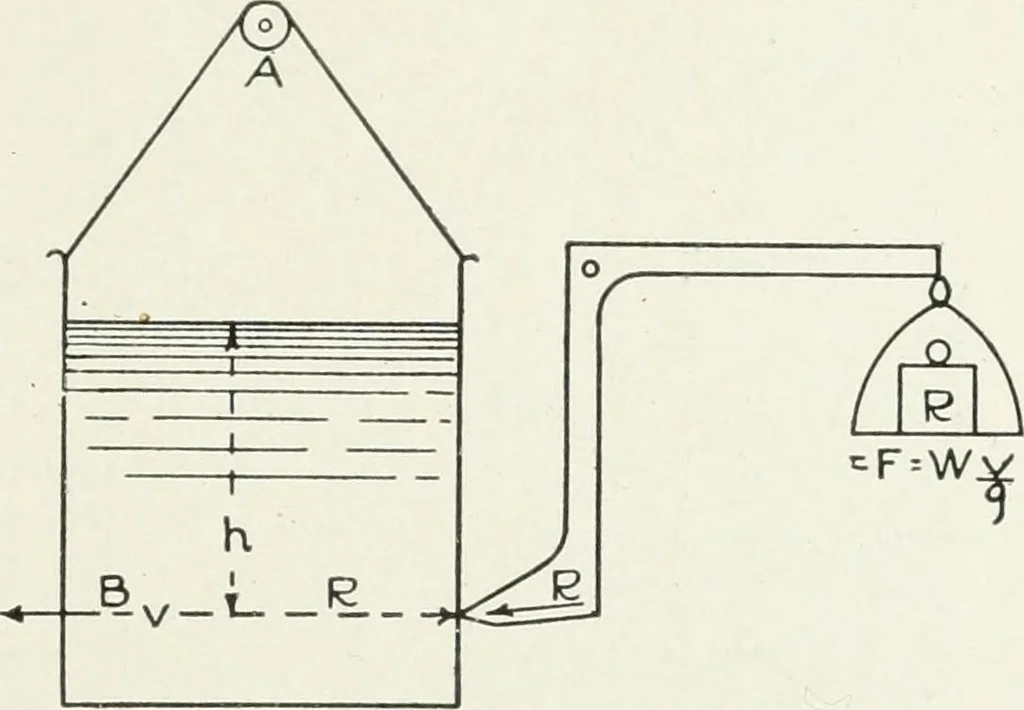

OWER DEVELOPMENT 17 second Is the rracfiiyn of the jet; and if a force R be aj)j)li(<l as sliown,of just sufficient intensity to prevent this motion of the vessel, itsvalue is: R-w^^F (22) which is the reaction of the jet. 21, The impuls3 or reaction of a jet issuing from an orificeis double the… … Fig. 5. Measuring the Reaction of a Jet by Weighing. draulics, Article 6) is: Hydrostatic pressure= wah pounds. When the orifice is opened, the weight o. the discharge per second (see Hydraulics, Article IS) is theoretically JJ — wav; hence. 2wav^ „ . (23) F R = W — = wav - y y 29 2 wah. 100 This…
