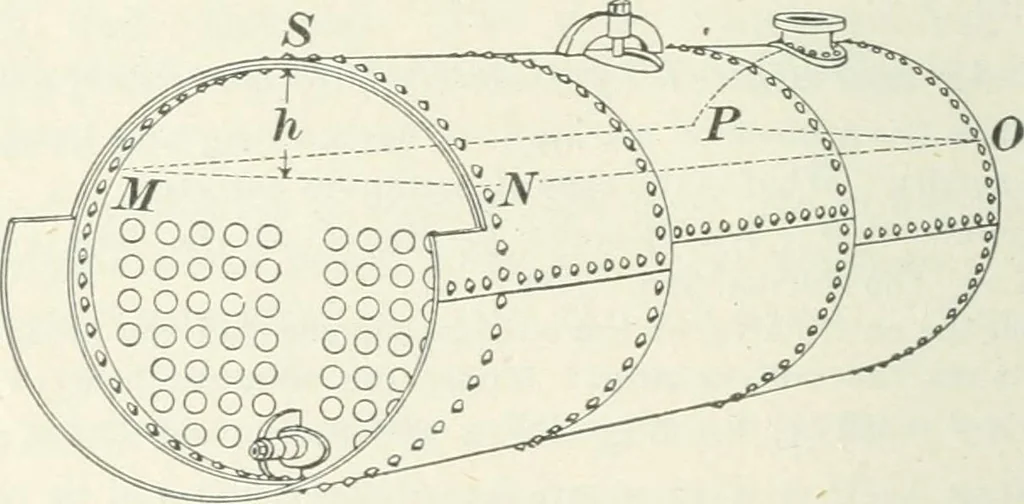

of side.866 inch. Area of triangle A C B = \/V - .52 = |/.75, or= .433 sq. in.; area of the whole polygon = .433 X 6 = 2.598 sq. in. Hence, the contents of theprism = 2.598 X 12 = 31.176 cu. in. Ans. Example 3.—It is required to find the number of cubic feet of steamspace in the boiler shown in… … Flc. 53. heads, 54 inches in diameter, and the mean water-line AfN is at adistance of 16 inches from the top of the boiler. The volume of thesteam outlet casting may be neglected. Solution.—The volume of the steam space, which is that spacewithin the boiler above the surface M N O P of the water,…
