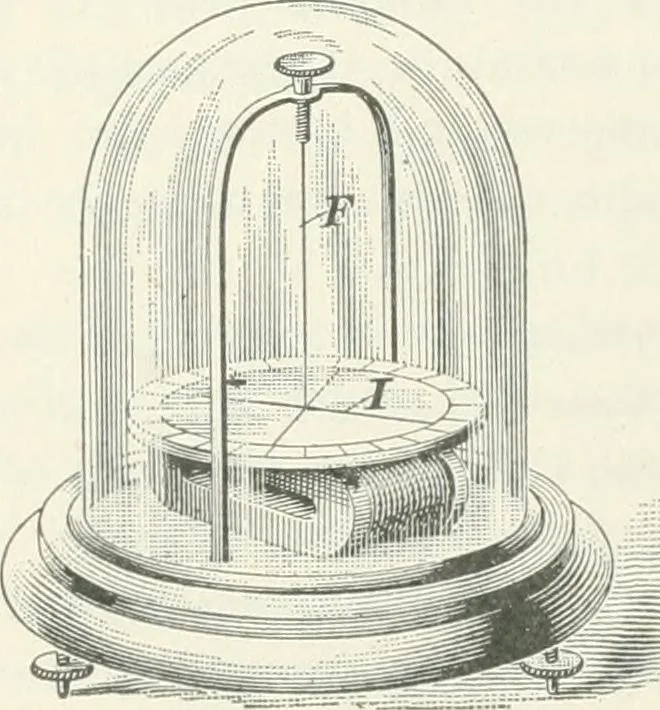

r suspension, as shown by F inFig. 32. In the simpler forms of galvanometers, the mag-netic needle itself swings over a dial graduated in degrees; in other forms, a light indexneedle is rigidly attached tothe magnetic needle and swingsover a similar dial, as indicatedby / in Fig. 32; and in themore… … §8 ELECTRICITY AND MACxNETISM 29 In any of these galvanometers, wlien no current is flowingin the coils, the needle should ])oint in a direction parallel tothe length of the coil. Fig. 34. The measuring of currentsby most galvanometers depends upon the magnetic needlebeing held in this position by…
