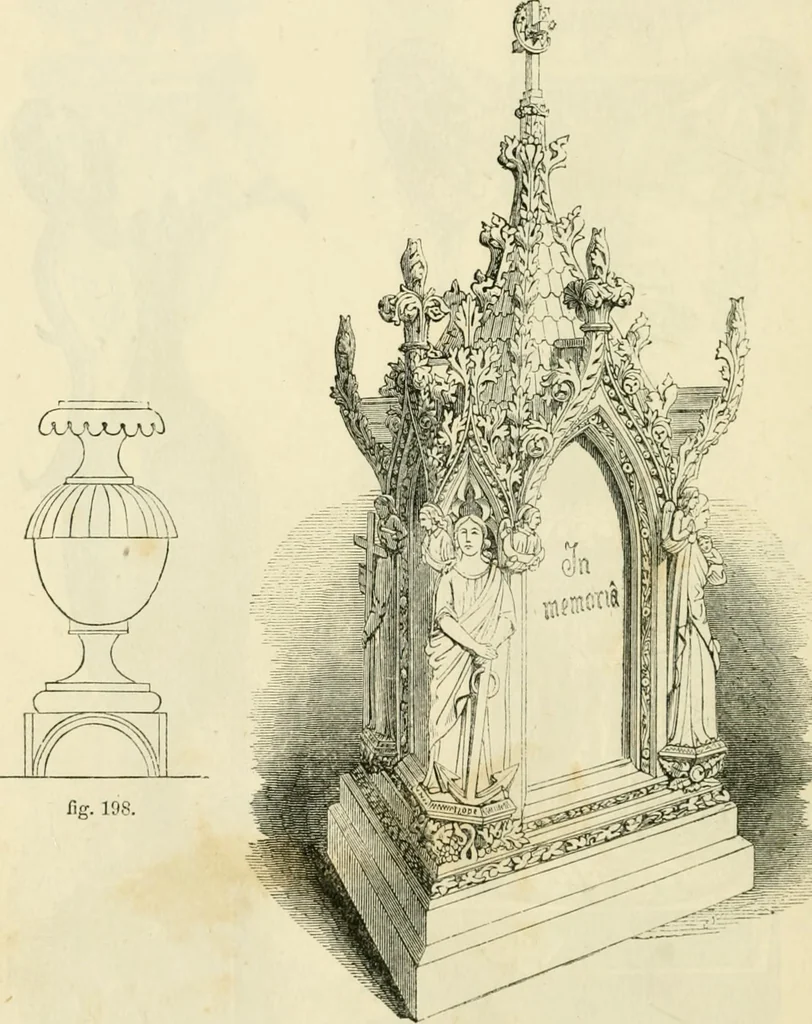

fisc, 197. 100 ILLUSTRATED ARCHITECTURAL, Example 196, fig. 198. Another example of vase, with the outlinesornamented. Ex.\MPLE 197, fig. 199. Design for a Gothic monument. … liL. 199. ENGINEERING, AND MECIIANICAL DRAWING-BOOK. 101 ■ Example 198, fio;. 200. A design for a fountain.Example 199, tig. 201, is tlie elevation of a stained window in tliegeometrical style.
