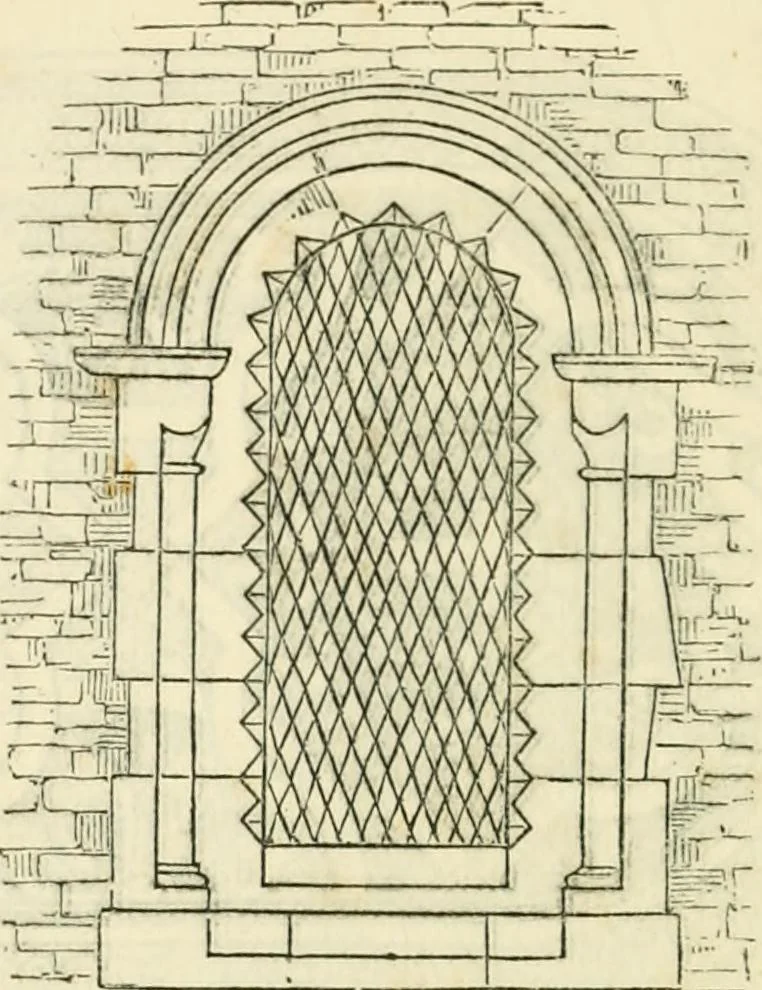

102 ILLUSTRATED AUCIIITECTURAL, We now, as concluding tliis department of our .treatise, proceed to givea series of designs, exemplifying by inspection the peculiarities of thevarious periods of Gotliic architecture as generally received. ExAjiPLE 200, fig. 202, is an elevation of a Norman… … fig. 202. Example 201, tig. 203, is the Early-English (or Lancet). This style
