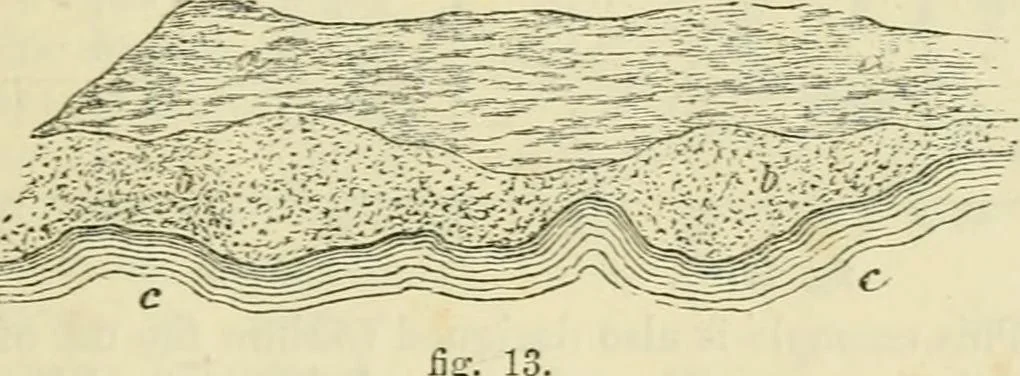

fig. 11. EXGISEERIXG, AND MECHANICAL DRAWIXG-1500K. 109 Example 12, fig. 12, represents a river entering the soa ; the coast isdelineated as in the sketch. fiff. 12. Example 13, fig. 13, represents part cf a sea-line of coast c c, withsandy shoal h h, and swampy morass a a. … Example 14, fig. 1-4, represents the method of delineating a rock, usedin marine maps. A range of rocks is represented in Example 15, fig. 1-5, and a rock surrounded by sand inExample 16, fig. 16.
