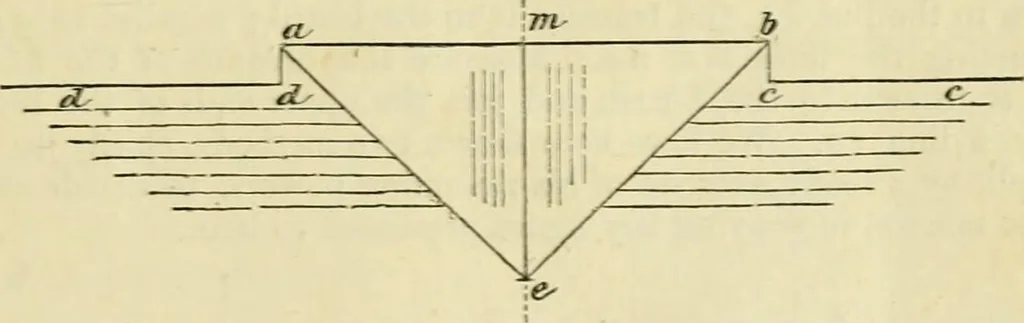

y necessary here to state, that the instrumentsrequisite for the various operations are the same as those required for theconstructions described in the Illustrated Practical Geometri/, the draw-ing-board, square, and triangle, these being absolutely indispensable.As this work is strictly designed… … On the drawing-paper, properly fastened to the board, mark any pointa; parallel to the side of the drawing-board, draw from this point anyline, and make it equal to a h. Bisect this in the point m ; at right anglesto a 6 draw from this point a line to e, and make this equal to m e in thecopy. Join…
