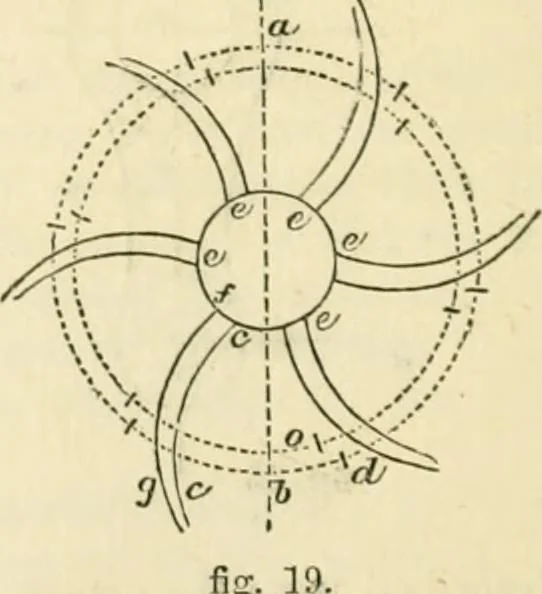

ing the centre of the circle from whichthe curve c c is drawn, as d ; transfer this tothe copy, and from d with d c draw the curvec c ; from c measure iof, thus giving the breadthof arm at eye ; from /, with the radius of thecurvey taken from the copy, cut the circle 0 ino ; from this point with… … EXGIXEERIXO, AND MECHAXICAL DUAWIXG-ROOK. 123 ExAMPLF. 19, fig. 20, represents the bottom part of foot of a cast-ironfi-amino-. Draw a line c J : from c measure to a and h ; through these
