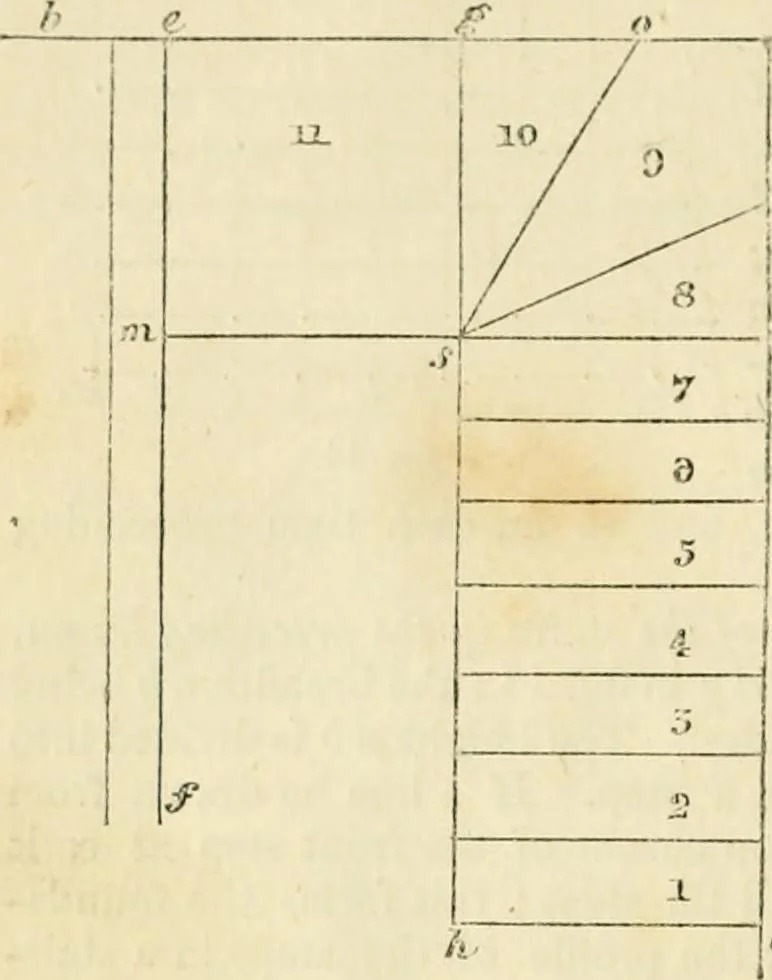

giveanother lesson similar to this in Example 18. Draw ab, b d atright angles to one another ; fromb measure to c and e, and draw e h,c h at right angles to b (7, b a. Di-vide e d into two equal parts, andfig. 17. ca into seven. Measure from c to /, and from b tog; join hf, hg.Example 19 shows plan…
