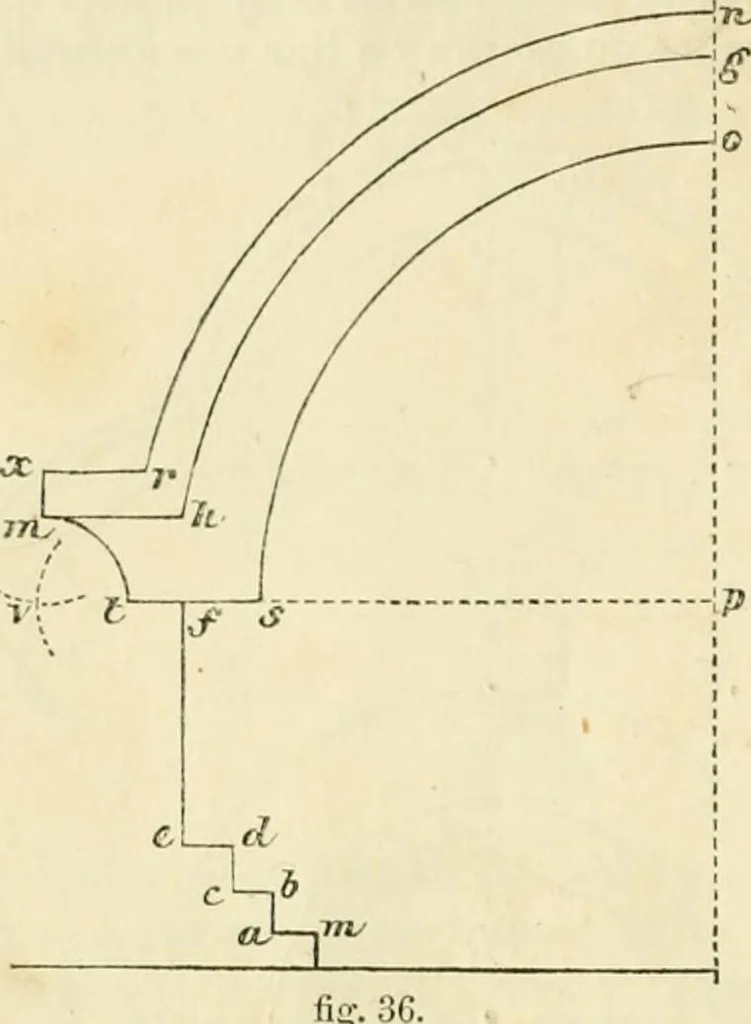

, making the pointh distant from the line s t equal tofl 0. In like manner describe n r.From h and /• draw lines h m, r x parallel to s t. From the points m t,with radius greater than half the distance, describe arcs meeting in v;from V, Avith same radius, describe the arc m t; join x m. Example…
