The illustrated architectural, engineering, & mechanical drawing-book : for the use of schools, students, and artisans ; upwards of 300 illustrations (1856)
Burn, Robert Scott · London : Ward and Lock, 158 Fleet Street · leaf 41

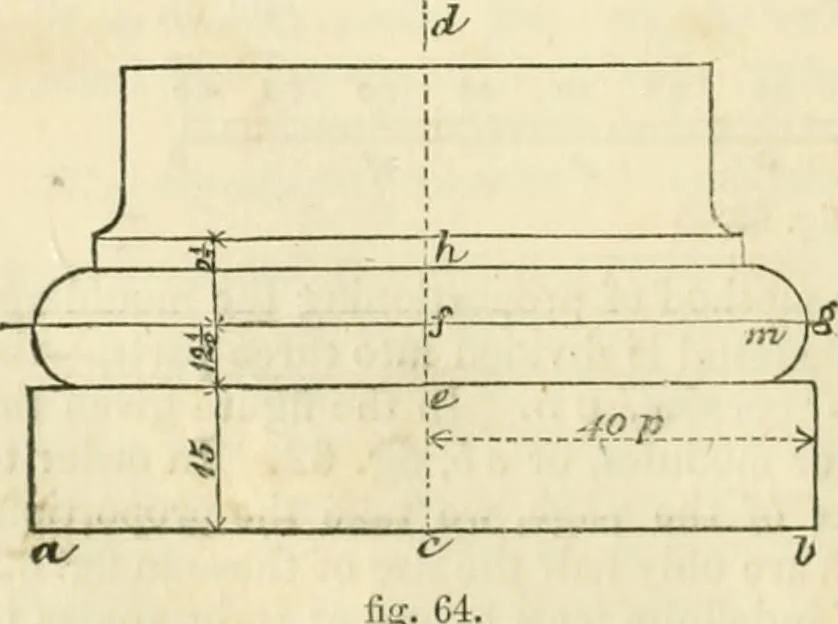

ah, making ch equal 40 parts, andc e equal 15 ; make the torusmoulding in height equal 12^parts.The centre m of the circular ter-mination is found on the line f.Make the fillet h equal 21 parts,and its projection from centre-lineequal 33f, or nearly 34 parts.To describe the apopliygee, bywliich the… … EXGIXEERIXG, AXD MECHANICAL DRAAVING-BOOK. 39 Example 65, fig. 65, is the Tuscan capital, drawn to the same scaleas the others. Draw cd, a h at right angles ; make ca, cb equal22| parts,or ab equal 45; make the fillet of the astra-gal e n equal 24^ parts, or nen equal 49parts. Make g h equal 27 ; g…
Architectural drawing · Mechanical drawing
