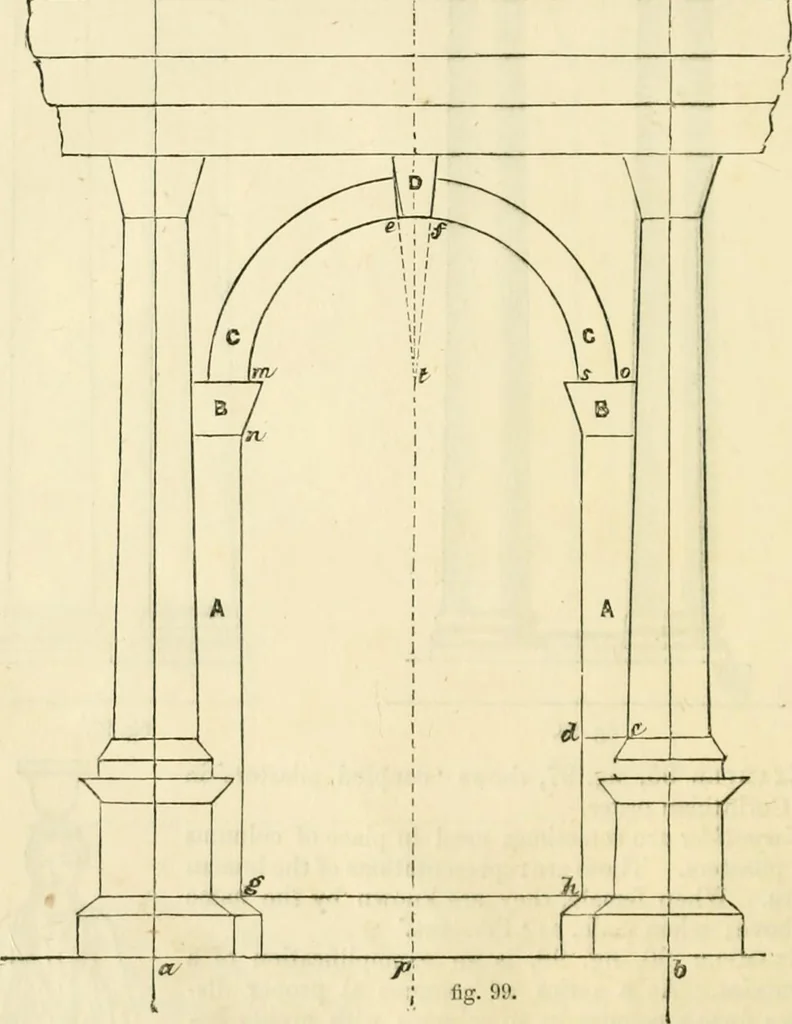

fi?. 98. *54 ILLISTRATED ARCHITECTURAL, post; the capital of impost is obtained by dividing fi h into seven or eightequal parts, and giving one of these from m to n ; the width of archivolt sois equal to one-ninth part of // h; the width of keystone at efis equal to0 s. By drawing lines to e and… … examples of arcades in the other orders, we quote the following directionsof a celebrated author on architecture as to proportions :— The height ofarches to the underside of their crowns should not exceed twice their clearwidth, nor should it be much less; the piers ought not to be less…
