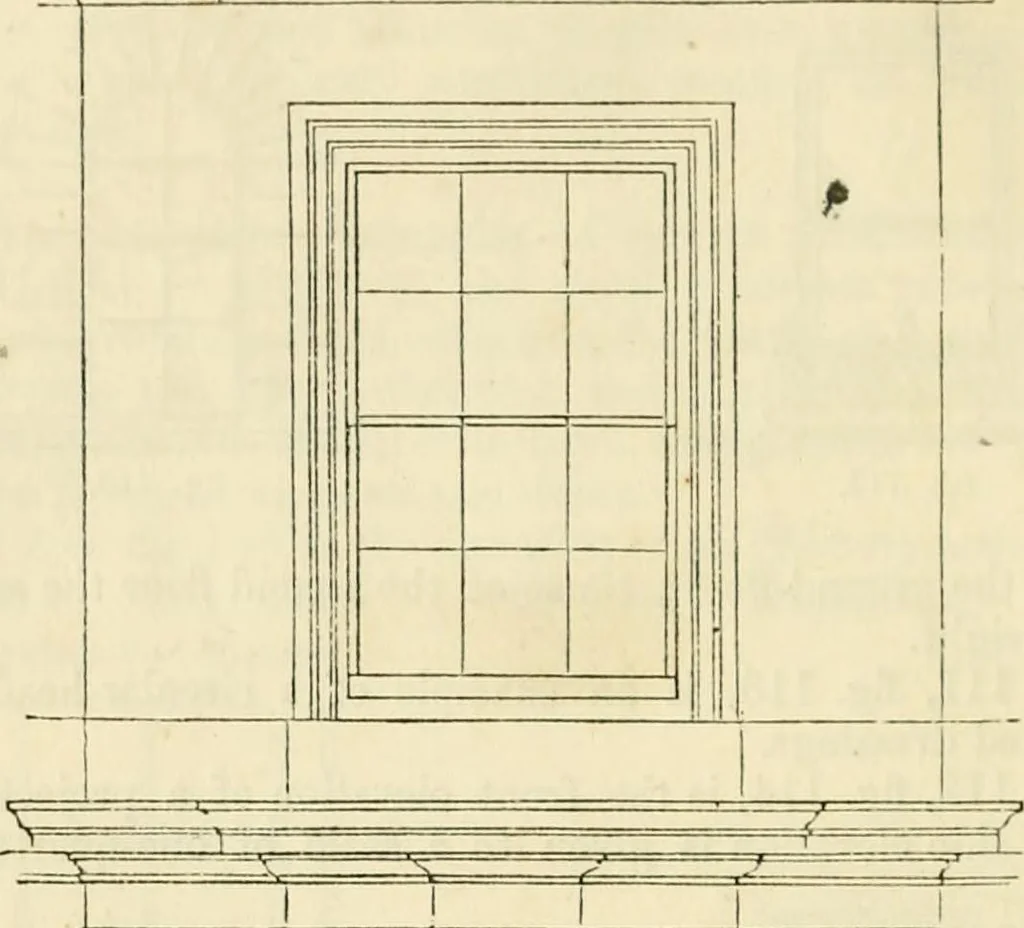

^ ■^^^ 1 1 4 —1 > = 1 1 y / Uc- 1^. ... fig. 114. fig. 115. We shall now give examples of windows placed over windows. Example 114, fig. 116, is the front elevation of a bay-window in thelight Italian style, the plan of which shows the three sides of an octagon. 60 ILLUSTRATED ARCHITECTURAL,… … fig. 11G. Example 115, fig. 117, which is drawn to the same scale as above. Example IIG, fig. 118, is the elevation of a bay-windoAv on the ground-floor, in the Domestic Gothic style, with bedroom-window over it. Thescale is one-eighth of an inch to the foot. Example 117, fig. 119, is another…
