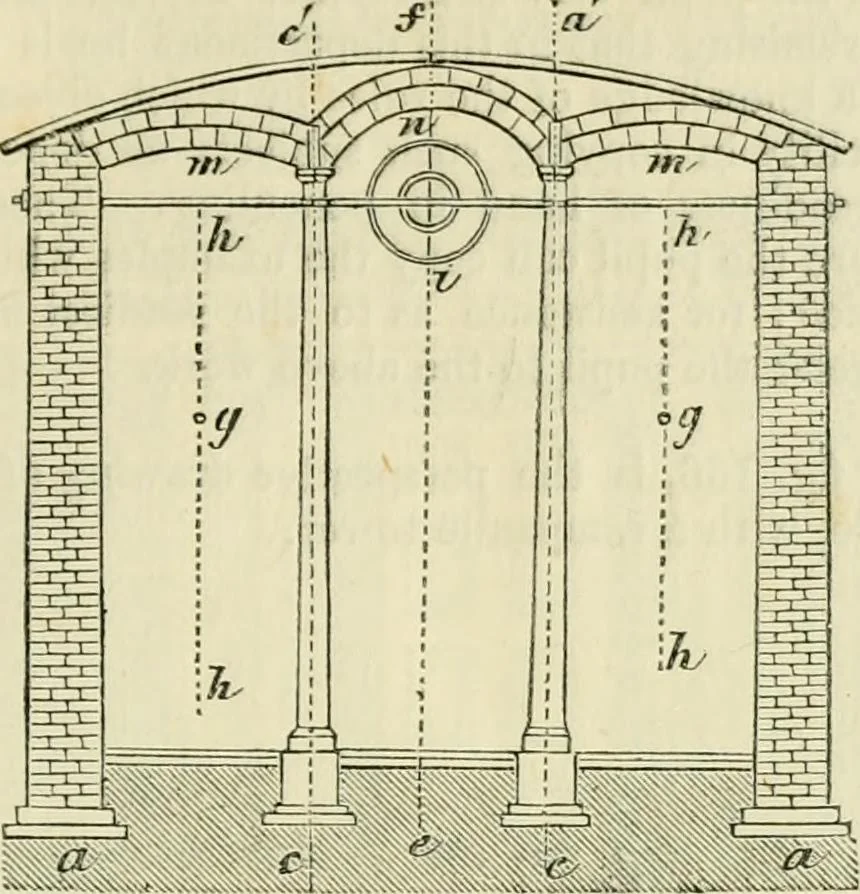

ENGINEERING, AND MECHANICAL DRAWING-BOOK. 85 through both, and secured by a screw bolt, nnd nut. The arches tn, mare described from their centres <j, g on the lines /*, h, springing from thepillars c, d; the arch n is described from centre i. … fig. 164.Example 1G3, fig. 165, is a transverse section of a fireproof cottage.
