Illustrated catalogue of cotton machinery built by Howard & Bullough American Machine Company, Ltd., Pawtucket, R.I., U.S.A. : opening, picking, carding, drawing, roving, spinning, twisting and winding machinery : warpers and slashers : containing also floor spaces, speeds, productions, gearing diagrams, useful tables and other information (1909)

Howard & Bullough American Machine Co · [Pawtucket, R.I. : Howard & Bullough American Machine Company] · leaf 79

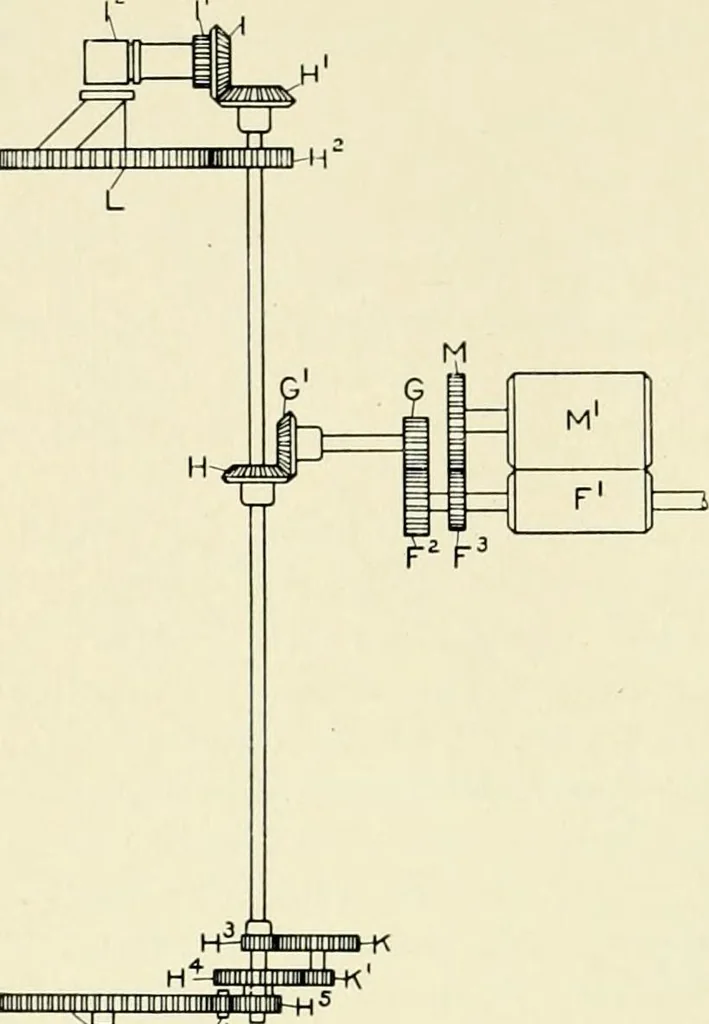

An illustration from Illustrated catalogue of cotton machinery built by Howard & Bullough American Machine Company, Ltd., Pawtucket, R.I., U.S.A. : opening, picking, carding, drawing, roving, spinning, twisting and winding machinery : warpers and slashers : containing also floor spaces, speeds, productions, gearing diagrams, useful tables and other information, 1909, leaf 79 — r^ , T3 Ti 11 f 3^^ in. dia.y, [CombBox Pulley|4/|.^_^^.^^_ W Doffer Comb. 74 REVOLVING FLAT CARD. … iiiiiiimniiiiiiiiiiiny|ii DIAGRAM or CARD COILCR GLARING F^ Coiler Driving Gear \ 24 Teeth for 10-in. Coiler, ■( 25 Teeth for 12-in. Coiler. F3 Top Calender Driving Gear, 23 Teeth. G Coiler Change Gear, 16 Teeth. Gi Coiler Driving Bevel Gear, 20 Teeth. H Coiler Middle Upright Bevel Gear, 20 Teeth.…

Howard & Bullough American Machine Co · Cotton machinery · Cotton machinery industry -- Rhode Island Pawtucket · Textile machinery industry -- Rhode Island Pawtucket
