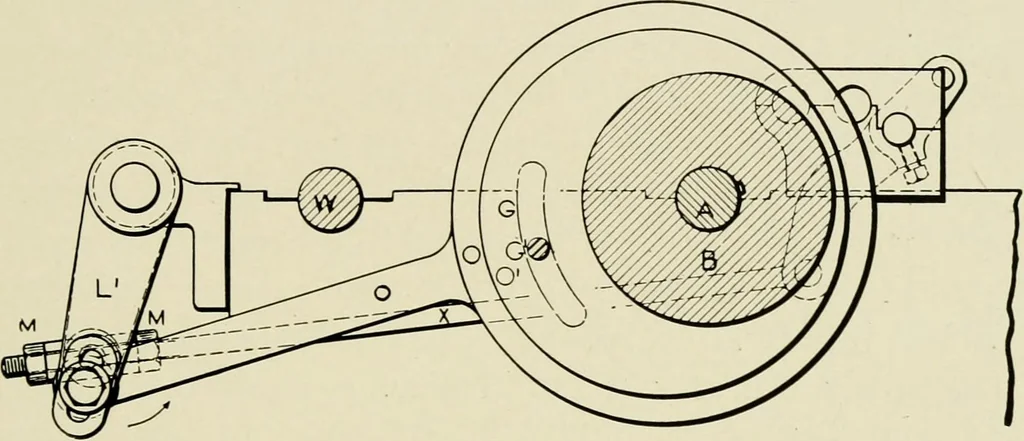

t will go.Then turn to index 1 and move the cam forward till theroller begins to turn backward. Test this setting byturning the machine by hand, as it is important that theroller begins to move precisely at index 1. THE TOPLEATHER-COVERED DETACHING ROLLER. SETTING No. 11.Time. At index 20, set the… … FiG.6. as near the top comb blade as it will work without rubbing.(Say, -^2 in., Fig. 5.) If further away, useless waste is made. Note 13.—In early machines, the lever L, Fig. 3, wasfastened on the shaft W and the roller rocked exactlyin time with the nipper. In such machines set the leverL…
