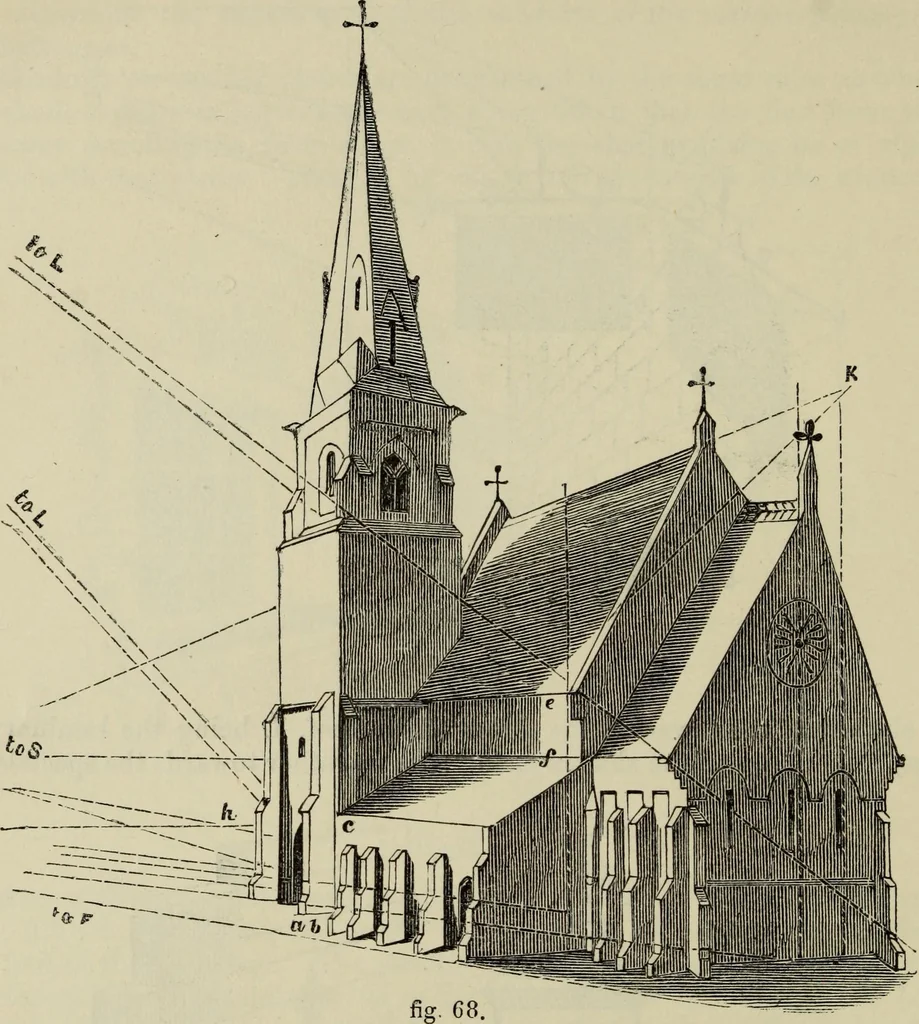

estory wall, carry upparallel with b c, intersecting the top line of the lower roof at f. Join candt/^ which gives the shadows outline on the inclined plane of the lowerroof; next find the perspective centre-line of the plan of the church, peivpendicularly under the ridge; and where a b intersects… … roof; find the perspective position of the furthest angle of the tower; andby the same process of finding its shadow-line on the ground-plane, anderecting a perpendicular where it crosses the centre-line under the ridge,the intersection of the shadow with the ridge and the boundary-line of itsother…
