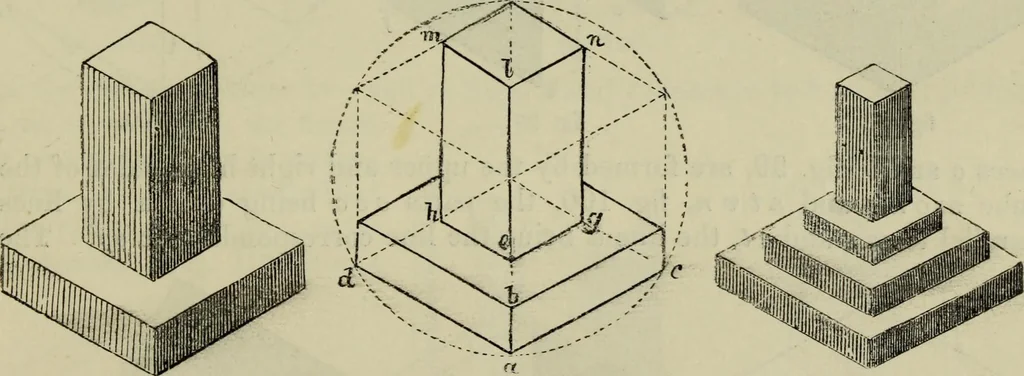

ig. 92 is given the representation of an oblong block standingperpendicularly on a flat stone. The method of drawing it is shewn in fig.93. From a draw to d and c,—these give the length of the sides of theunder block ; from a measure to b,—this gives the thickness; from thispoint parallel to a c, a… … fig. 92. fig 93. fig. 94. and giving the breadth of the faces of the oblong block; from e measureto I, and put in the square o m, In; join all the points, and the figure iscomplete, the distance e I being the height of the block. In fig. 94 the same subject is represented, but a succession of…
