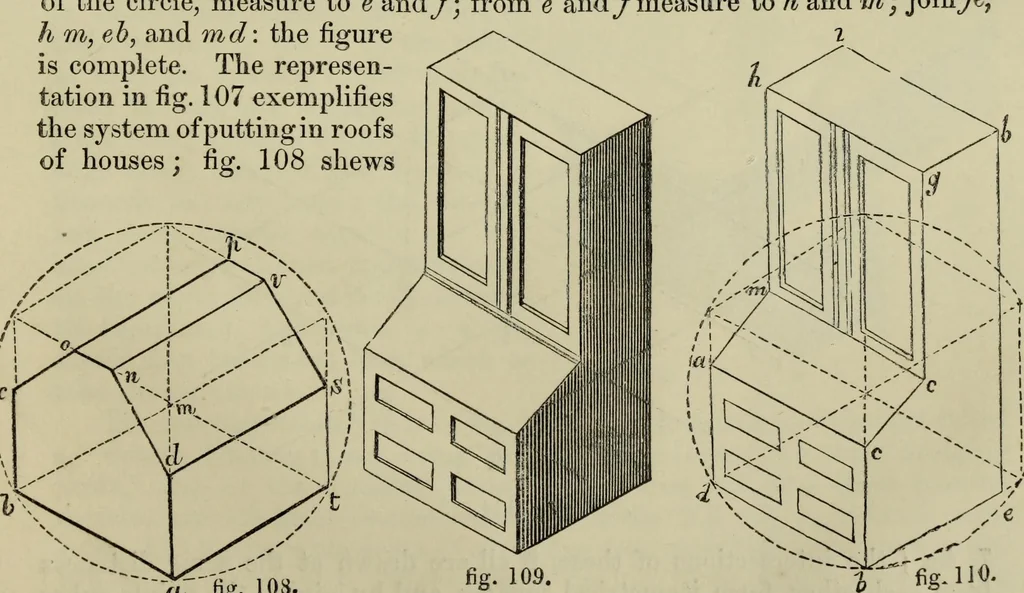

of the circle, measure to e and J) fromh m, eb, and md\ the figureis complete. The represen-tation in fig. 107 exemplifiesthe system of putting in roofsof houses; fig. 108 shews and J- measure to h and m; join/e, … aT fig. los. 118 ILLUSTRATED LONDON DRAWING-BOOK. the method in which it may be drawn. First draw the side a, fig. 107,as a d s t, fig. 108 ; then the side b, by measuring from a to b, and froma, b to c, d; from m, the centre of the circle, measure to n and o ; from n, odraw parallel to d s, nv,…
