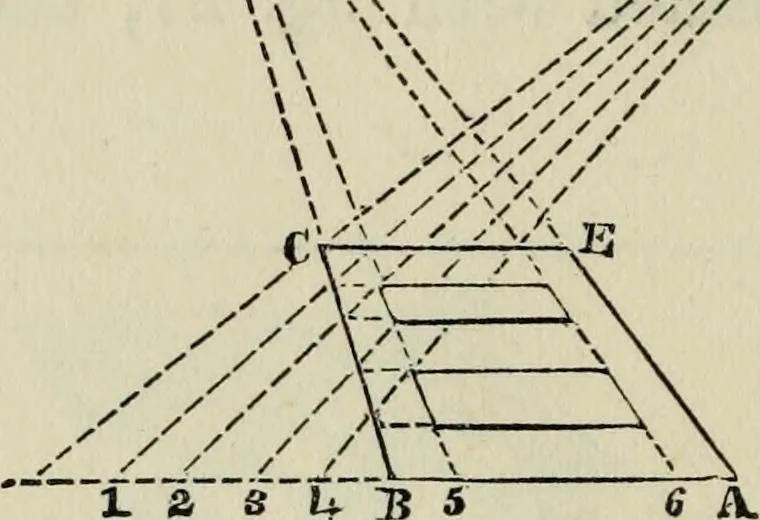

e theperspective length of the long side ; complete the figure by drawing A Gparallel to E F. These rules will apply to the drawing of right-lined figures in parallelperspective, under every variety of arrangement. Thus, to draw in per-spective a square enclosing two rectangles, as in the plan fig.… … fig. 30. ABCE, fig. 30, by preceding rules ; pro-till they intersect those of the square atn 1, 2, 3, 4, 5, 6 on the plan; g^ ^ those points on thef0 base-line of the perspective ,i0 view ; draw the diagonals D 1, D 2, D 3, D 4 ; thepoints of intersection withS B will denote the per-spective…
