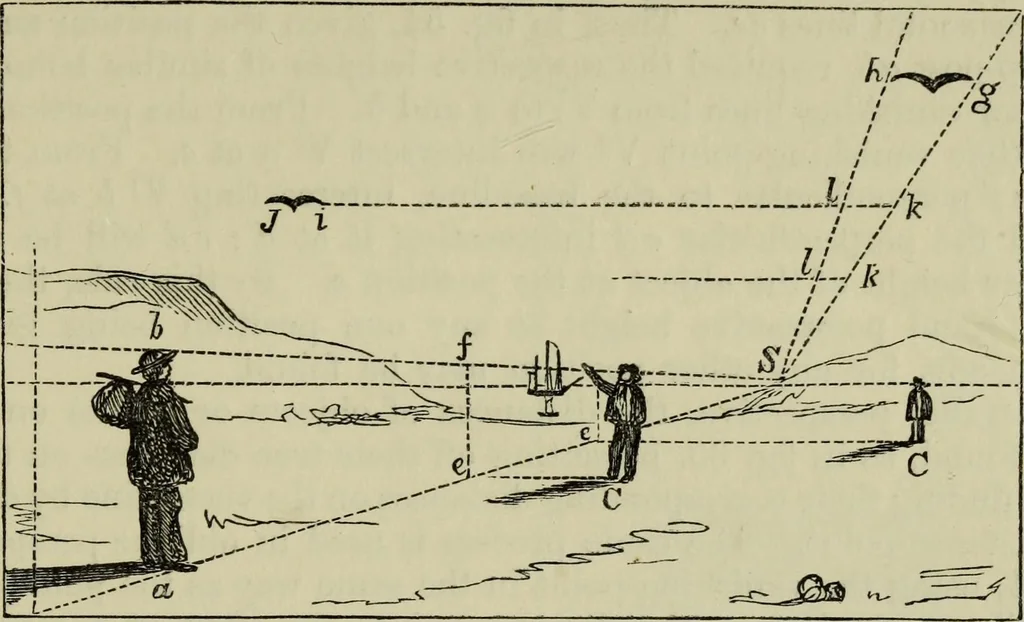

endicular b, the space on that perpendicular down tob will be the true perspective height of the front angle of the object. The PERSPECTIVE DRAWING. 83 heights of the upper and lower lines of the windows and door are to befound in the same way by setting them off on the line c f. When the… … fig. 53. means of visual rays to the point of sight. Thus in fig. 53, having by thelast rule found the height a& of a figure standing at the position a, re-quired the representation of another figure of equal height at the position c.Draw the visual lines &a, Sb. From the position C draw Ce…
