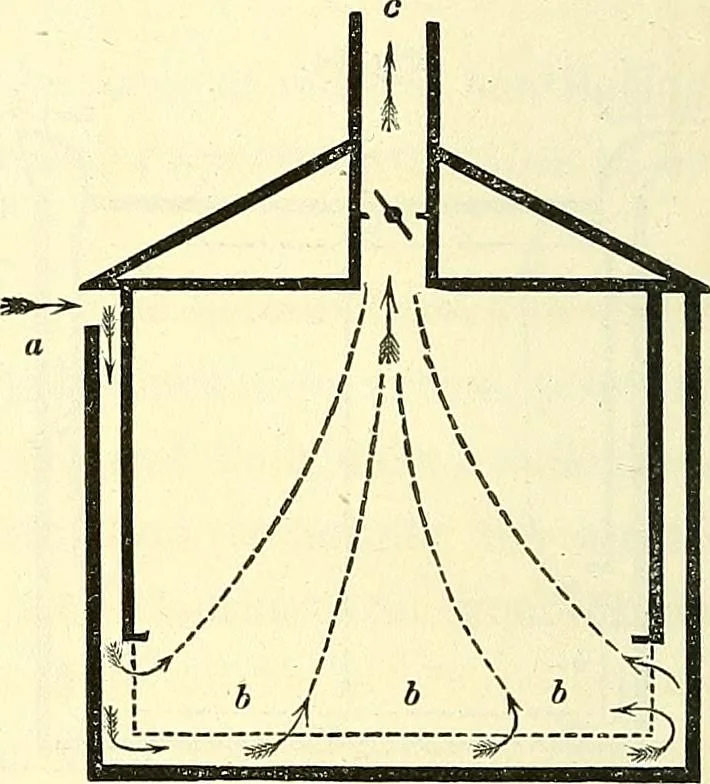

261. Fig. 98.—The air is received by openings in the gableand under the roof. Diffusion is given by a deep dado. Theair escapes by a central channel, and the discharge is regulatedby a valve. 262. Fig. 99.—Similar to 94, but the air is admitted by aflue in the wall, and more extensive diffusion is…
