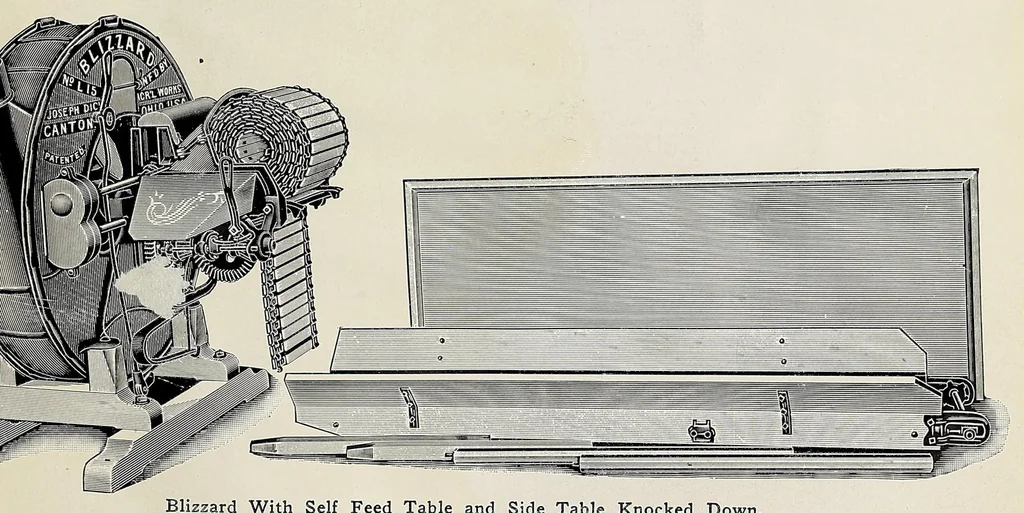

d wood slats. These chains are propelled and travel over sprocket wheels, secured to a separate shaft directly in the rear of the lower feed roll. The bearings on this shaft are made adjustable, to take up the wear on the drive. The lower feed roll and self feed belt are driven from the same shaft,… … Blizzard With Self Feed Table and Side Table Knocked Down. On the rear end of table is located a shaft with adjustable bearings to carry the endless belt. By simply turning a stay bolt this endless belt can always be kept taut. The plain table can be readily _ changed to a self feed table machine…
