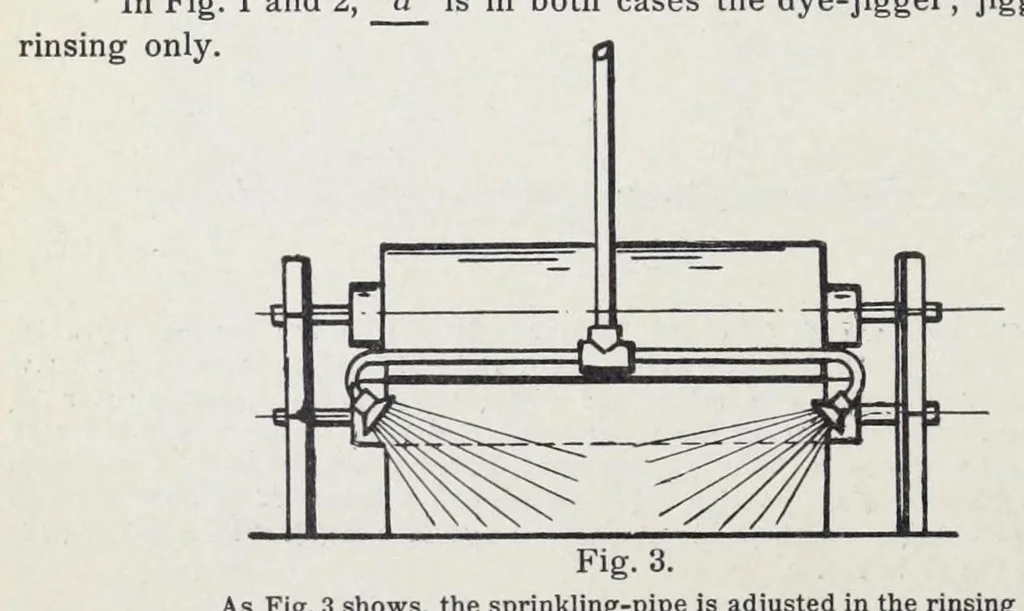

Immedial Indogene it has been found an advantage to run the goods, between the dyeing and rinsing, over several guiding rollers through the air for oxidising purposes, as shown in Fig. 2. 'a" Fig. 2. ’3L In Fig. 2 the squeezing rollers are pressed down by screw pressure regulated by the wheel ( c… … As Fig. 3 shows, the sprinkling-pipe is adjusted in the rinsing jigger in such a manner that the goods are given a lively sprinkling on both sides previous to the squeezing off. 2
