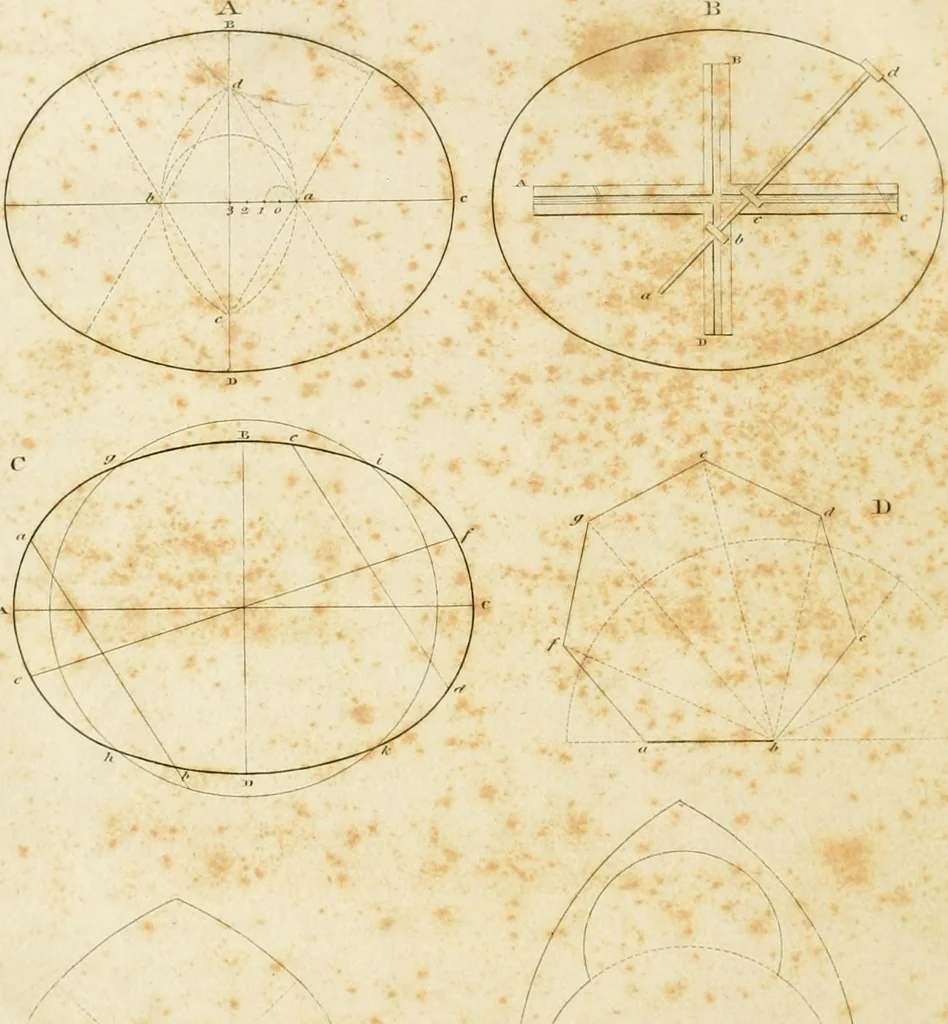

with one foot in b describe ace; divide the space c b into twoparts at d; with the extent c d in the compasses set off c/and c e; connect af,fe, and e b, and the square will be complete. To lay off a square with a ten-foot rod: Let a b, fig. 1, be the given line; with eight feet of the rod from b… … THE YOUNG CARPENTERS ASSISTANT. 7 Three points (not in a right hne) or a small part of a circle, being given to finda centre which will describe a circle to pass through the point or complete thecircle: Let a b c, fig. K, be the three points or part of a circle given; to find the centreof which,…
