An improved and enlarged edition of Biddle's young carpenter's assistant : being a complete system of architecture for carpenters, joiners, and workmen in general, adapted to the style of building in the United States ; revised and corrected, with several additional articles, and forty-eight new designs, chiefly of full size, working drawings of modern finish, in detail ; particularly adapted for country use (1833)
Biddle, Owen, Haviland, John, 1792-1852 · Philadelphia : M'Carty & Davis, 171 Market Street · leaf 130

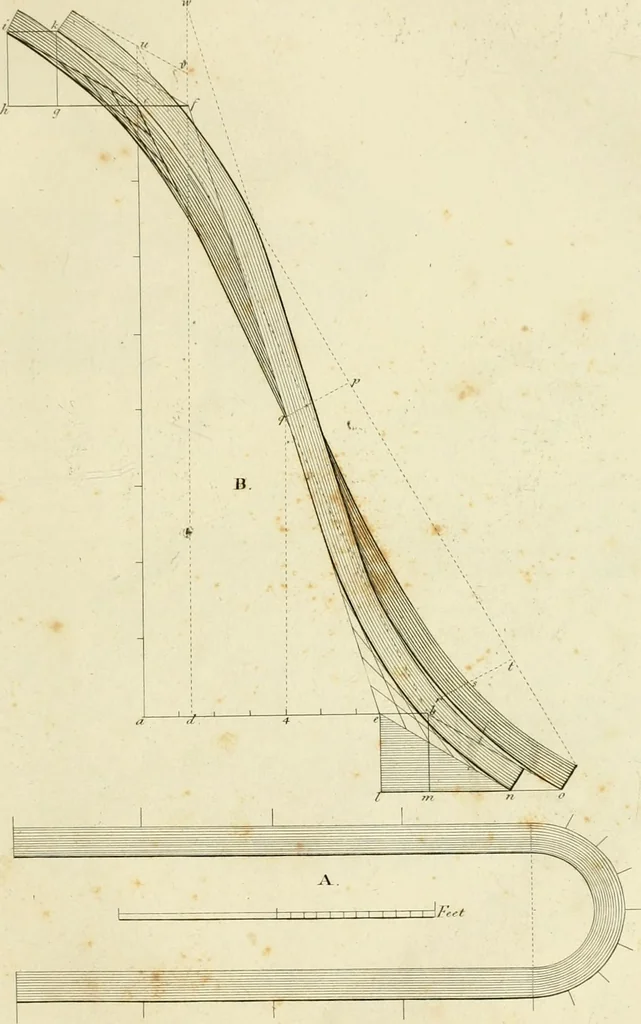

out, and twisted, become square, and of theproper size. PLATE 47. In this Plate is shown the manner of drawing the section of an eave. After theform of the cornice is fixed on, a section of it should be drawn, either by a properscale, or to its full size, and then the joist should be drawn with its…
