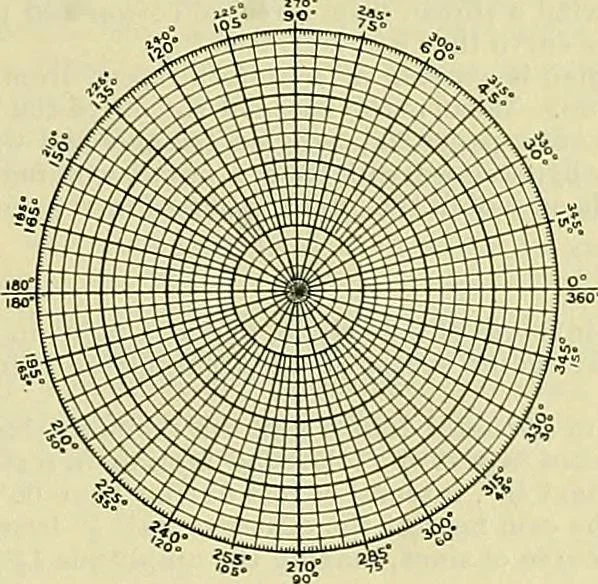

Fig. 250.—Development of a helix. Fig. 251.—Projections of a helix. Fig. 252.—Plotting paper for polar co-ordinates. curve, and its axis is in a horizontal position, whilst the latter is the elevation of a line winding round the cylinder, and its axisis in a vertical position. The plans of the…
