Industrial drawing and geometry; an introduction to various branches of technical drawing (1911)
Spooner, Henry John, 1856- · London, New York [etc.] Longmans, Green, and co. · leaf 151

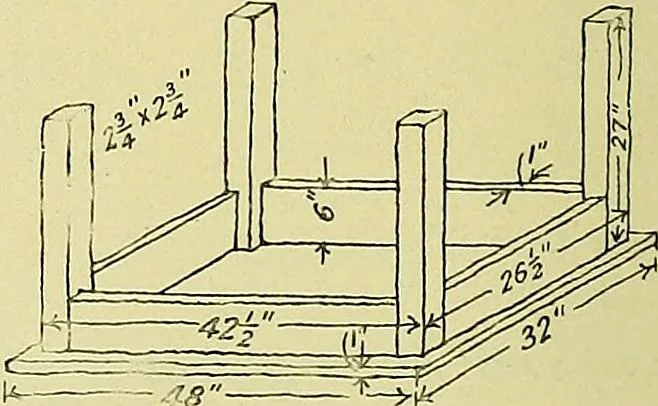

Pig. 416.—Isometric sketch of woodenstand for a machine. Fig. 419.—Pictorial sketch of kitchen table,inverted. Pigs. 417, 418.—Front and end elevations of stand. better showing the Avay the legs are arranged. Draw the two views (Figs. 420, 421) and add a plan, dotting in the legs, etc., to ascale…
