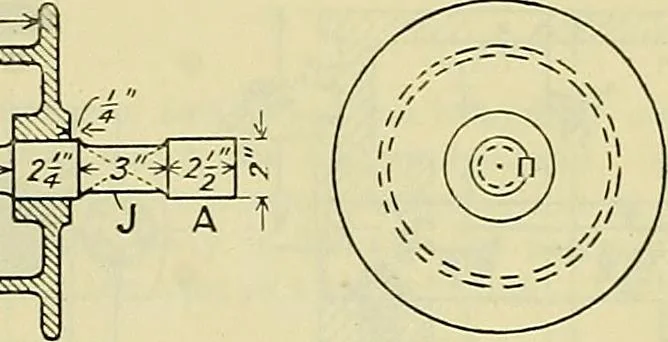

N -Tit-—/J-—- il^J. I FiGS. 480, 481.—Sectional elevation and end elevation of casedbutt coupling. \^^,■..,-^■^-.^w-^-^■■-■~■■~^k^||>.-w^^^^^^^^ Pig. 482.—Section of drum or barrel of hoistingmachine. … Fig. 483.—End elevation. 250. How to measure the Diameter of a Large Cylindrical Body.—If you had a pair of calipers large enough, the diameter of a bodysuch as the rough drum, Figs. 482, 48.3, could be accurately measured, but your small pocket calipers would not be large enough forthe purpose.…
