Industrial drawing and geometry; an introduction to various branches of technical drawing (1911)
Spooner, Henry John, 1856- · London, New York [etc.] Longmans, Green, and co. · leaf 47

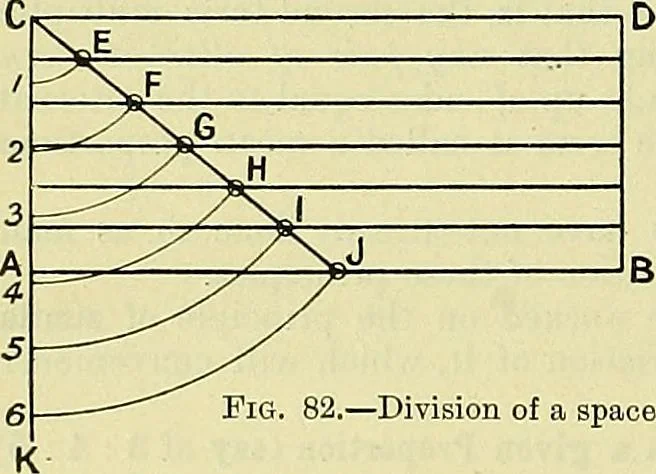

3, 4, 5, 6 equal spaces; then with centre C, and C6 radius describe an arc 6 J, cutting AB inJ. Join C to J, and with centreC describe the arcs IE, 2F, 3G,etc., and through the points E, F,G, etc., draw lines parallel to AB.These divide the space as required. Note.—Suppose AG represented theheight…
