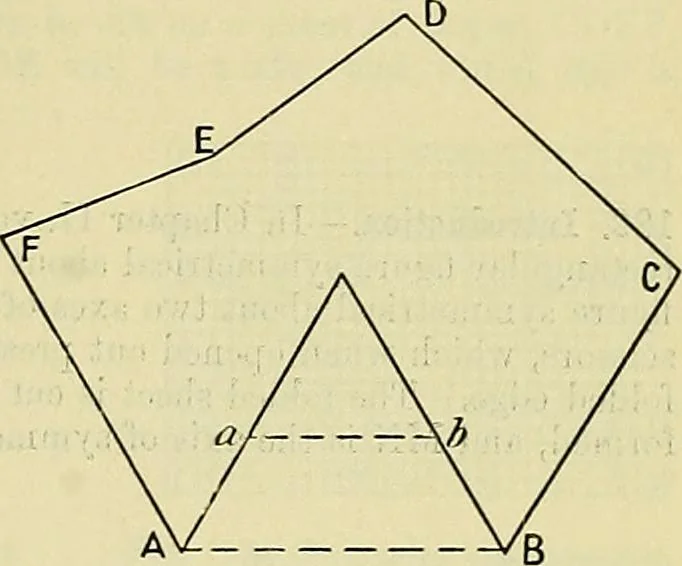

^ -V, . ■v. )— \ / ; \ / / s / 1 / / / s A B … Fig. 187. Fig. 188. Pig. 189. 2. Draw a figure on base CB (Fig. 187), similar to the one on base AB. 3. Carefully copy the figure given in Pig. 188, and by using squares, as in the figure, draw an enlarged copy, doubling all the linear dimensions. 4. On ab (Fig. 189) as base, construct an irregular…
