Information; elementary electricity, motor car electric systems, the gas engine from an ignition point of view, driving the car (1920)
Phillips, Harvey Elmer, 1874-1948 · Dayton, Ohio, Auto Electric Systems Publishing Company · leaf 149

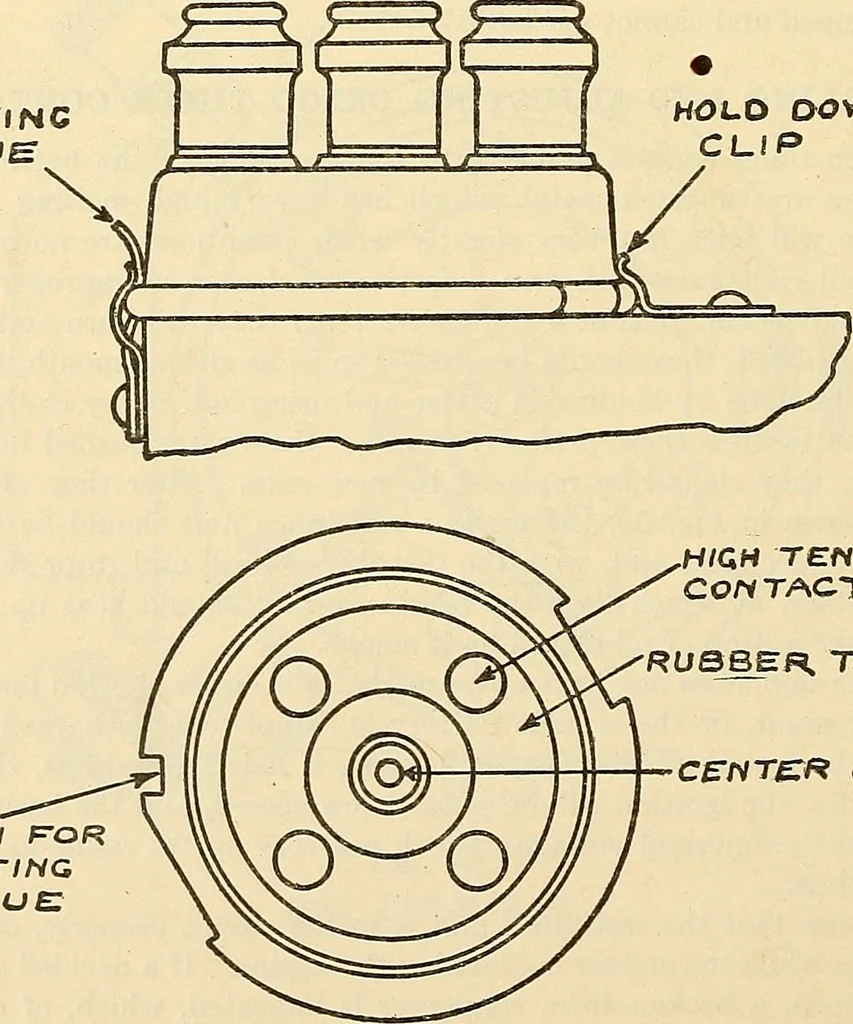

or contact note the following instructions: When contact arm isdirectly on top of lobe of cam the distance between points A, Fig. 59, should be about fifteenthousandths of an inch. When the lobe of cam of timer has broken contact with the contactarm, the distance between the points B, Fig. 59,… … HIGH TENSIONCONTACT RUBBER. TRACK CENTER CONTACT Fig. 60. DELCO SYSTEMS 147 INSTALLING DISTRIBUTOR HEADS All the Delco distributor heads are now fitted with a rotor track of hard rubber com-pound especially developed for this purpose. This overcomes the burning of the distributorheads which…
Automobiles
Internet Archive · Boston College Libraries · Public Domain Mark 1.0. Free to use for anything.
