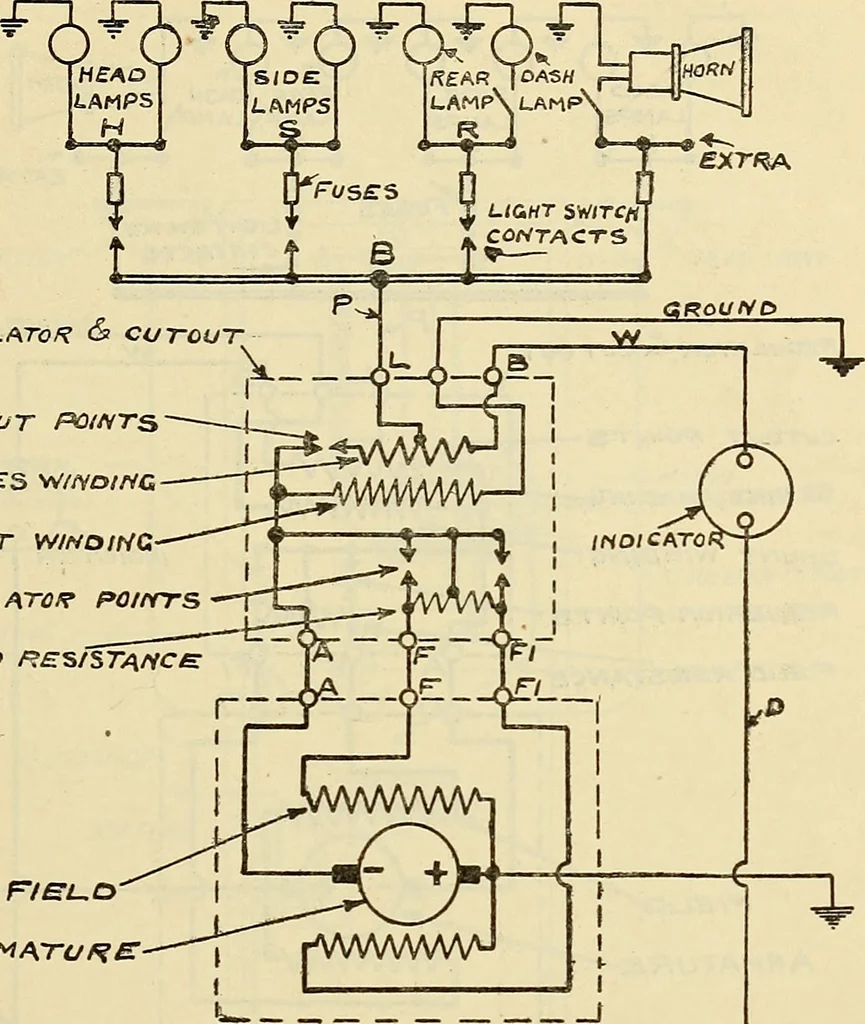

can be gained by studying the wiring diagrams. Figs. 27 and 28 are very similar toeach other, the only difference being in the starting motor circuit. On some cars the systemis grounded at the motor and on others at the starting switch. The system on the Peerless,Chandler, Stearns, Winton, Metz,… … regulator & cutout Cutout pointsser/£s w//yo//vcshuht w//vo///cregulator pointsfield resistance nsuo ARMATURE DYNAMO
