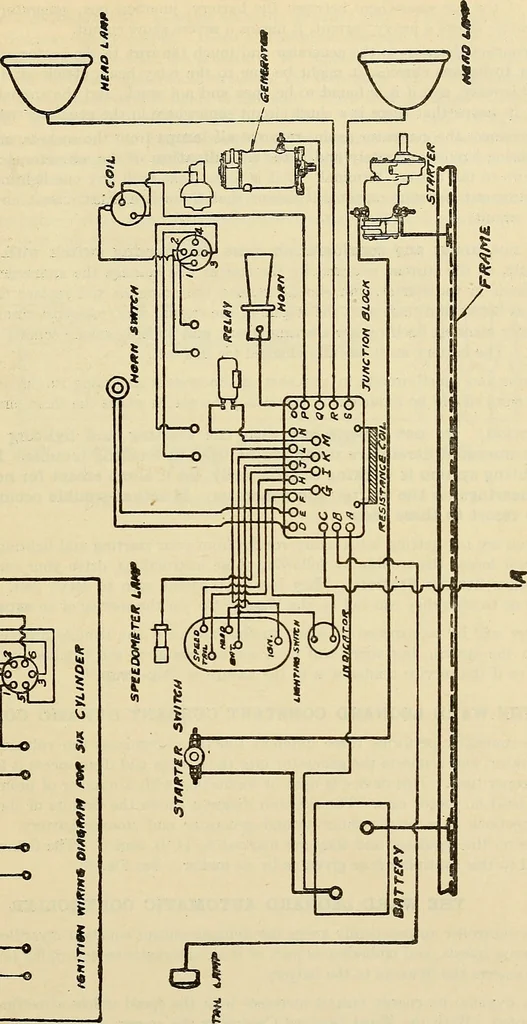

res. Connect a piece of wire to the other terminalof the ammeter, and hold the other end of this wire in the hand ready to touch the batteryterminal, which has been disconnected, according to the following: With the starter and generator disconnected, all lighting switches open, ignition… … * Ul Q * 2K 1—O * Q* I i P C L_ * Fig. 47. Wagner System. 228 INFORMATION wiring of the car somewhere between the battery, junction box, generator, or starter. Ifthe ammeter shows a heavy current, it means a severe short circuit. Reconnect the wire to the generator and touch the wire to the battery…
