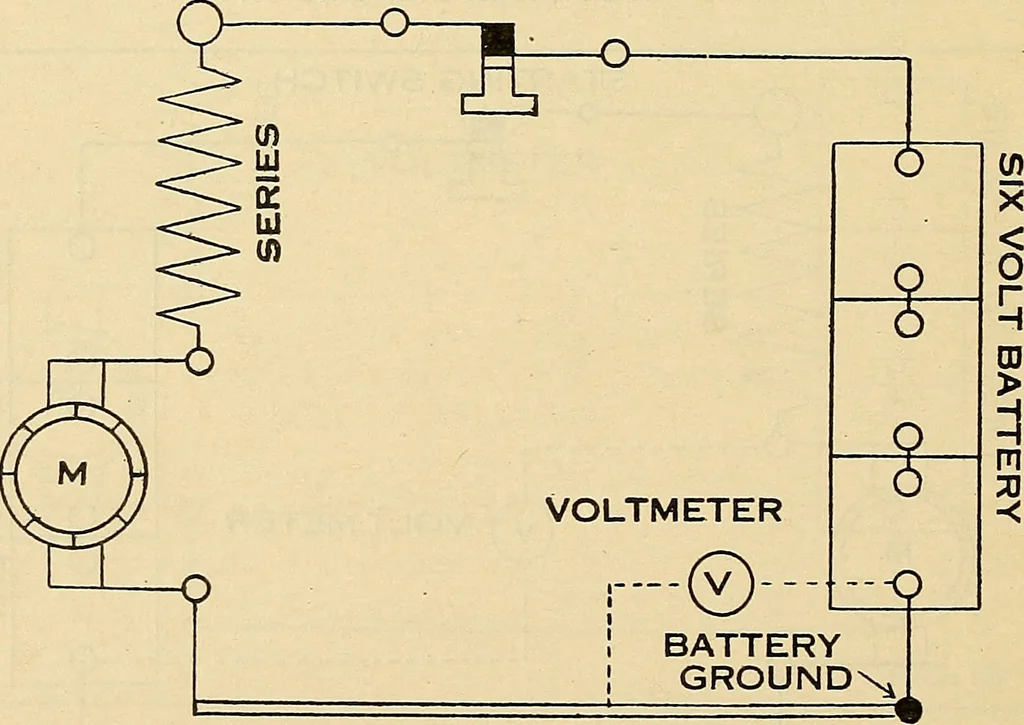

VOLT METER O % % FIG. 16 Figure 16. This shows the starting switch closed and the voltmeter connectedat the brushes of the starting motor. If voltage is all right at this point, then in-spect the conditions of the commutator and brushes as described under Figure 14. STARTING SWITCHO -o- … FIG. 17 Figure 17. This shows starting switch closed and the voltmeter connected tothe ground terminal of the battery, and the other side of the voltmeter connectedto the frame of the car. If the voltmeter shows a reading, the ground connectionat the frame of the car is poor. Remove the battery…
