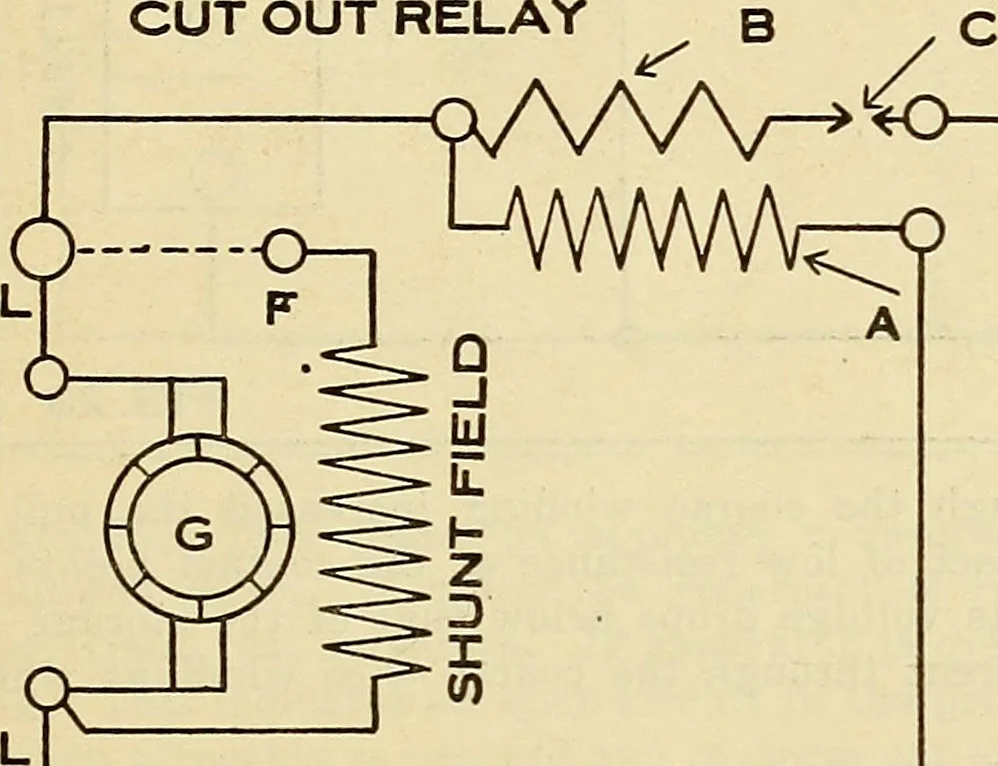

ON position it also causes thesecontacts to close. The voltmeter shows the pressure of the generator and the ammeter indicatesthe output of the generator. Connected as shown, it will indicate discharge of thebattery for lights or horn. Figure 21. Tins shows a generator wired to a battery. Contacts… … % FIG. 22 Figure 22. This shows a generator wired to a battery with a cut-out relayconnected in one side of the line. The cut-out relay takes the place of the contactsin the two preceding figures and is automatic. In this sketch A is the voltagewinding, B is the primary winding, and C is the…
