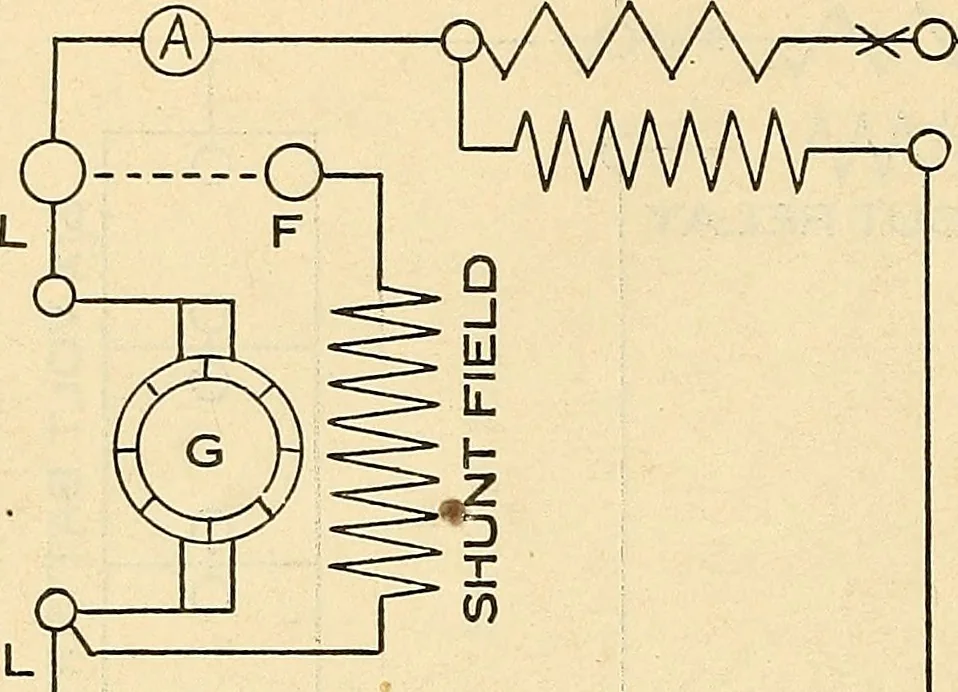

o o x <0 r H CD>H m < FIG. 26 Figure 26. This shows test for open shunt field. Be sure to disconnect allwires from the generator. Then use test cord from 110-volt circuit, with lampcut in on one side of the line as shown. If the lamp burns at all or there is aspark when the two points are… … o o FIG. 27 Figure 27. This shows the ammeter connected near the generator terminal,which will show the output of the generator. In many cases short circuits occurin the lines between the generator and the storage battery. First make the testas shown, which gives-the output of the generator. Then…
