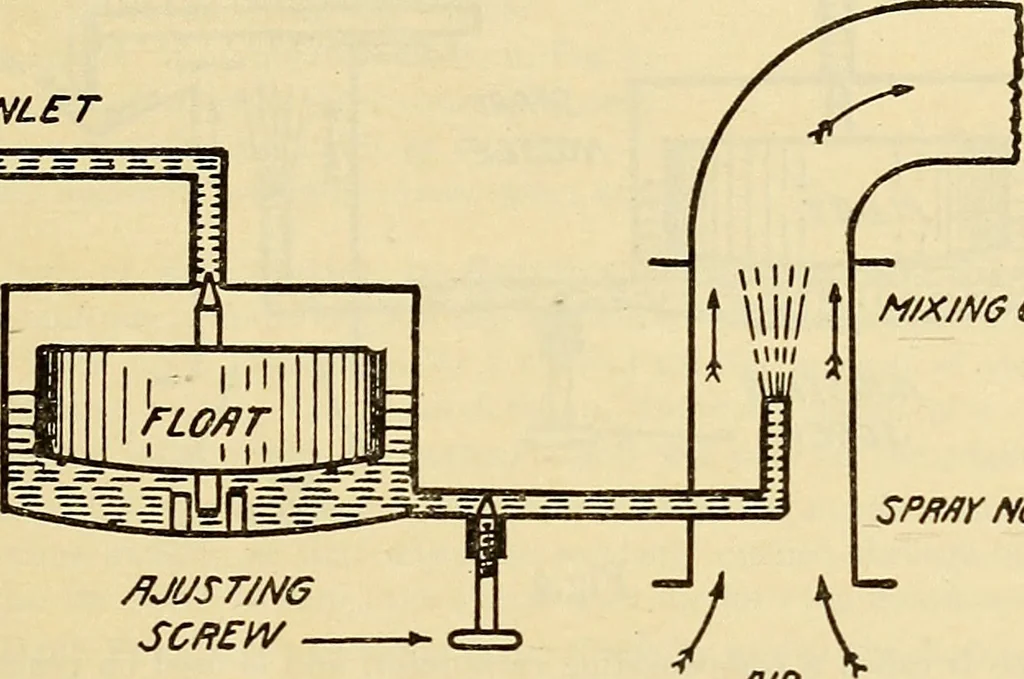

e float chamber and the flow of gas-oline into this chamber is regulated by a needle valve. 12. This needle valve is called the float valve, it being connected to and controlled bythe float. The float valve mechanism is adjusted so that when the engine is not running thegasoline level will not… … m/xtme TO CYLINDER /JJUST/NGSCREW - M/X/NG CHAMBER SPRMNOSJIE Fig. 1 MR/NLET 13. The air is drawn through the carburetor on the suction stroke, enters through theair intake, and passes around the spray nozzle, drawing gasoline with it. The level of thegasoline in the float chamber then drops and…
