Instructions for using the new improved Raymond family sewing machines and attachments (1902)
Raymond Manufacturing Company of Guelph · Guelph, Ont. : Raymond Manufacturing Company of Guelph · leaf 7

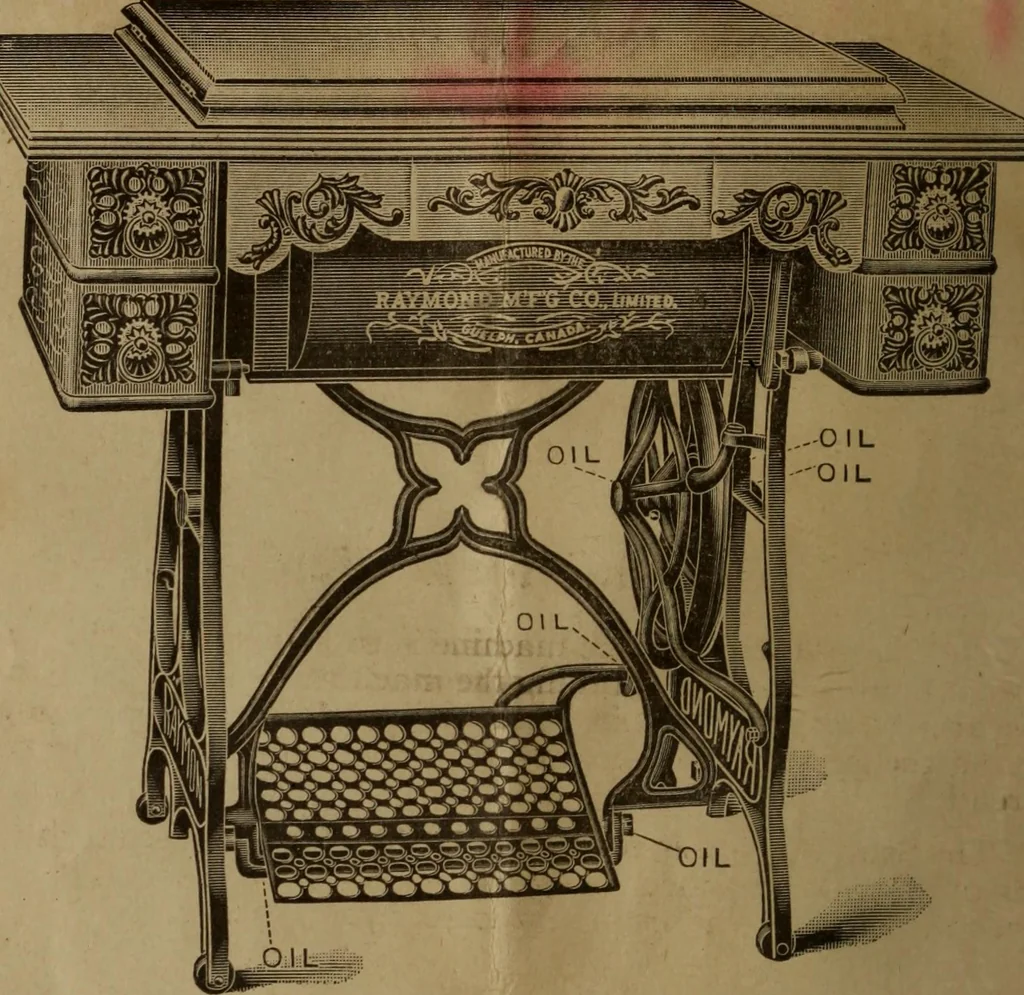

the shuttle race. To Oil Under the Bed of Machine Throw the belt off and turn the head back on its hinges. Theplaces to oil are : 1st. The ball lever joint. 2nd. The cone next to the plate, and oil hole in the long leverwhich carries the shuttle. 3rd. The bearing at lower end of the connection.… … The Places to Oil the Stand are : The oil holes in thelegs at each end of the balance wheel shaft; top and bottom „the wooden pitman, and the bearings of the treadle Che Belt. tWT>6 k-n* W.hi? runs the machine should be tight enough so lint i7el^Sl^u\X£i8hter; by havin^ itso the ™hi™™?Jff Ifthe…
